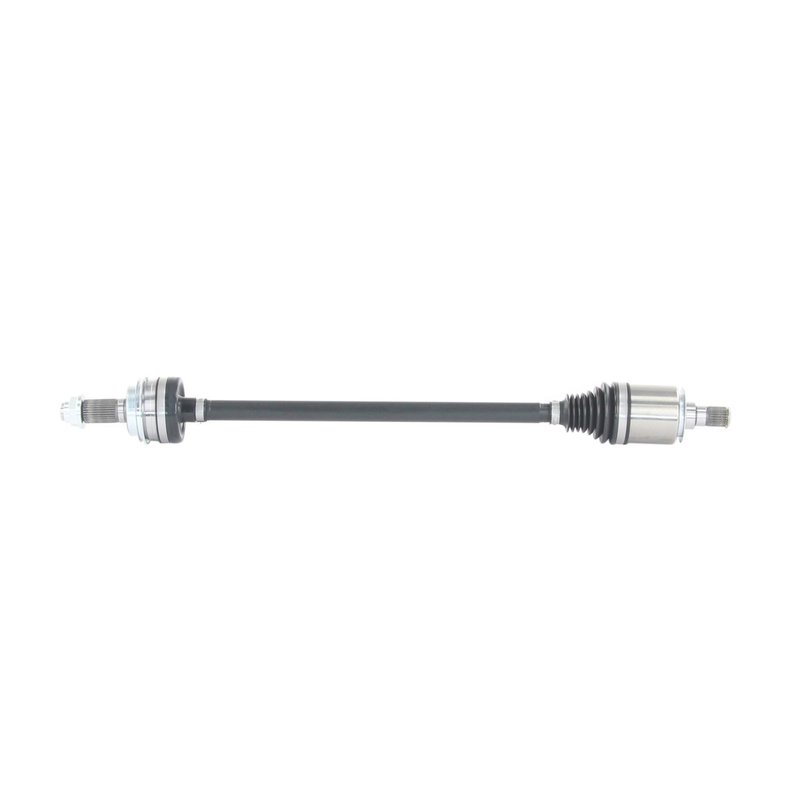

TrakMotive HO-86043 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-86043 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.94 |
| Overall Compressed Length (mm) | 812 |
| Overall Extended Length (in) | 33.81 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium grade. Built with thermoplastic boots and spline connections for dependable operation.
Includes axle nut. Stake-lock design with a 35 mm hex size for secure installation.
Cross-references TrakMotive HO-86043 for the same application. See all 1.
Rear Right CV Axle Shaft for Acura MDX
TrakMotive HO-86043 is a premium CV axle shaft for the rear right position on 2022-2023 Acura MDX models. It is built as an OE AAR design replacement for direct driveline service on the specified application.
Key Features
- Fits 2022-2023 Acura MDX, rear right
- TrakMotive AAR CV Axle Shaft line
- Premium grade replacement axle shaft
- Male inboard joint with spline connection
- Conventional outboard joint design
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 31.94 in. / 812 mm
- Overall extended length: 33.81 in. / 859 mm
Product Details
The HO-86043 CV axle shaft is engineered for the rear right driveline position on the Acura MDX, with 25 inboard splines and 30 outboard splines for the listed fitment. TrakMotive’s AAR CV Axle Shaft line focuses on OE-style application coverage, and this part is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration from a damaged or imbalanced axle shaft
- Grease leakage from deteriorated axle boots
- Driveline noise caused by spline or joint wear
- Loss of smooth power transfer to the rear right wheel
Installation Notes
Verify rear right fitment before installation on 2022-2023 Acura MDX applications. Confirm axle nut thread size, hex size, and locking style match the vehicle requirements, and inspect mating components for wear before assembly. Use the included axle nut only when it matches the specified application and follow factory service procedures for torque and staking.
Quality Assurance
TrakMotive HO-86043 is backed by a limited lifetime warranty. The part is produced by a company certified to ISO 9001:2008 and TS 16949:2009 quality standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Acura | MDX | Rear Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Acura | MDX | Rear Right | OE AAR design; AAR CV Axle Shaft |
