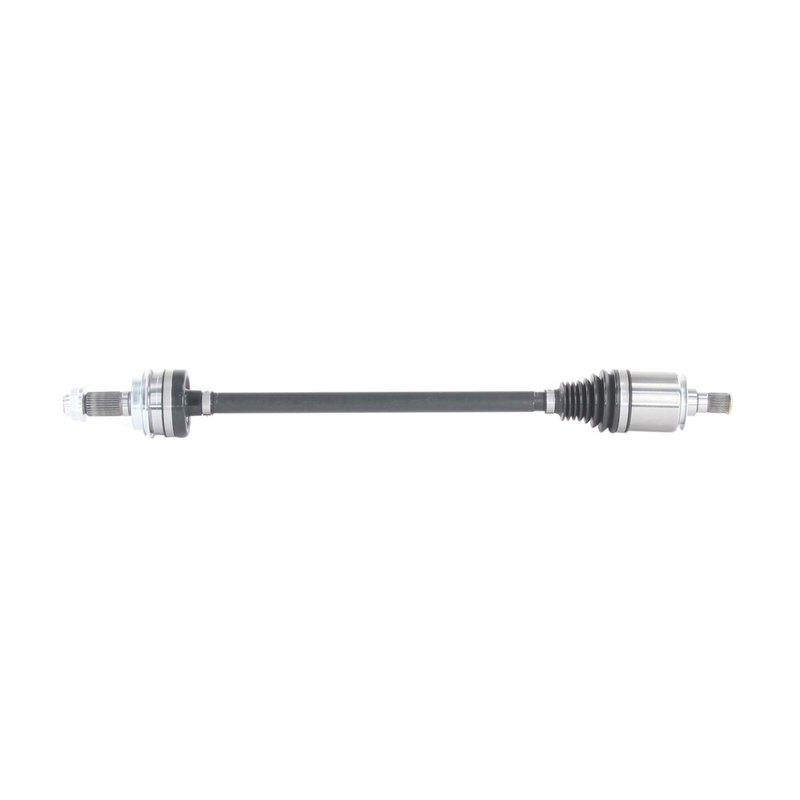

TrakMotive HO-86045 CV Axle Shaft - Rear Left
| Brand | TrakMotive HO-86045 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.94 |
| Overall Compressed Length (mm) | 787 |
| Overall Extended Length (in) | 32.81 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
OE-style replacement. Premium CV axle shaft with a direct-fit design.
Thermoplastic boots. Built to help protect the joints from wear and contamination.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
Cross-references TrakMotive HO-86045 for the same application. See all 1.
TrakMotive HO-86045 Rear Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86045 is a premium replacement axle for the rear left position on select Acura MDX models. It is built for 2022-2023 Acura MDX applications with OE AAR design, and it includes the axle nut for a cleaner service replacement.
The AAR CV Axle Shaft line focuses on application-specific driveline fitment and OE-style construction. For Acura MDX rear left service, HO-86045 provides the correct spline counts, compressed and extended lengths, and non-ABS configuration details needed for a direct replacement.
Key Features
- Fits 2022-2023 Acura MDX, rear left
- TrakMotive HO-86045 CV axle shaft for driveline and axle service
- OE AAR design for the listed application
- Premium grade construction
- Includes axle nut with M26x1.5 thread size
- Non-ABS axle configuration with no tone ring included
- 25 inboard splines and 30 outboard splines
- Thermoplastic boots on the inboard and outboard joints
Detailed Description
HO-86045 is a rear left CV axle shaft for the 2022-2023 Acura MDX, engineered around the OE AAR layout for the listed vehicle application. It uses a male inboard joint with spline connection, a conventional outboard joint, and the specified axle dimensions to match the original driveline geometry. The axle measures 30.94 inches compressed and 32.81 inches extended, helping maintain proper suspension travel and axle engagement on the Acura MDX rear left position. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What It Helps Repair
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged axle boots
- Axle play caused by worn splines or joint wear
- Driveline noise from a failing rear left axle assembly
Installation Notes and Tips
Verify the rear left position, spline count, axle nut thread size, and non-ABS configuration before installation. The included axle nut uses a stake-style locking design with a 35 mm hex size. Confirm compressed and extended length against the original axle to ensure proper fit on the Acura MDX.
Quality Assurance
TrakMotive lists this axle shaft under its AAR CV Axle Shaft line and states that the company is ISO 9001:2008 and TS 16949:2009 certified. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Acura | MDX | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Acura | MDX | Rear Left | OE AAR design; AAR CV Axle Shaft |
