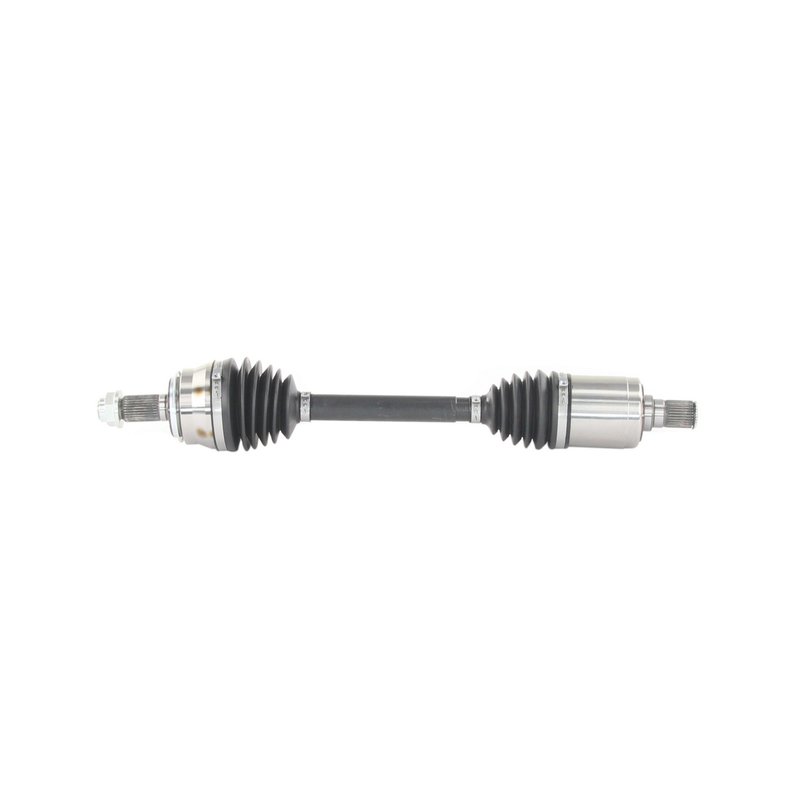

TrakMotive HO-86048 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86048 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.125 |
| Overall Compressed Length (mm) | 638 |
| Overall Extended Length (in) | 27.56 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 1 vehicle |
OE-style replacement. Premium CV axle shaft with spline connections for a straightforward install.
Thermoplastic boots. Durable boot material helps protect the joints from wear and contamination.
ABS-ready design. Configured for non-ABS applications with no tone ring included.
Cross-references TrakMotive HO-86048 for the same application. See all 1.
2021 Acura TLX Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86048 is a premium replacement for the front left position on the 2021 Acura TLX. It is built for OE-style driveline service with the correct spline counts, axle nut specification, and compressed/extended length for this application.
Key Features
- Fits 2021 Acura TLX, front left
- TrakMotive AAR CV Axle Shaft, part number HO-86048
- Premium-grade CV axle shaft for driveline repair
- 31 inboard splines and 30 outboard splines
- Male inboard joint with spline connection
- Conventional outboard joint design
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- Overall compressed length: 25.125 in (638 mm); overall extended length: 27.56 in (701 mm)
- ABS tone ring not included; 0 ABS ring tooth count
Product Details
This TrakMotive HO-86048 CV axle shaft is engineered for the 2021 Acura TLX front left application with OE AAR design requirements. The axle uses a 31-spline inboard connection and a 30-spline outboard connection, along with the specified axle nut dimensions to support proper fitment during driveline service. TrakMotive identifies this AAR CV Axle Shaft line as a premium replacement option, and the company states its products are manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems.
This part cross-references TrakMotive HO-86048 for the same application.
Common Repair Symptoms
- Clicking or popping noises during turns
- Vibration from the front driveline under acceleration
- Grease leakage from damaged CV boots
- Worn splines or joint play at the axle shaft
- Front left axle failure on a 2021 Acura TLX
Installation Notes
Verify front left fitment, spline count, and axle nut thread size before installation. The included axle nut uses a 35 mm hex size and stake locking design. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes for this AAR CV Axle Shaft line.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Acura | TLX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
