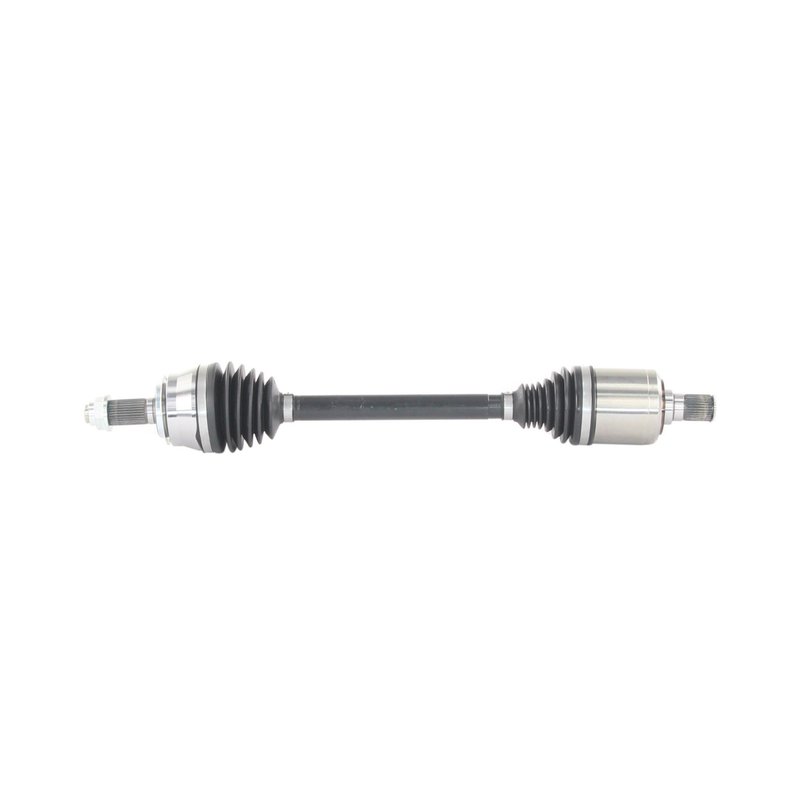

TrakMotive HO-86050 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86050 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.69 |
| Overall Compressed Length (mm) | 704 |
| Overall Extended Length (in) | 30.06 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
OE-style replacement. Built as a CV axle shaft with spline connections for straightforward installation.
Thermoplastic boots. Help protect the joints while maintaining flexibility and durability.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86050 for the same application. See all 1.
Front Left CV Axle Shaft for Acura MDX
TrakMotive HO-86050 is a premium CV axle shaft for the front left position on 2022-2023 Acura MDX models. It is built as an OE AAR design replacement for direct driveline service on the specified application.
Key Features
- Fits 2022-2023 Acura MDX, front left
- TrakMotive AAR CV Axle Shaft, part number HO-86050
- Premium grade replacement for driveline and axle service
- Male inboard joint with spline connection style
- Conventional outboard joint with spline connection style
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 27.69 in (704 mm); overall extended length: 30.06 in (764 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the front left side of the Acura MDX and follows the OE AAR design for the listed fitment. The HO-86050 uses a 31-spline inboard connection and a 30-spline outboard connection, with thermoplastic boot material at both joints for driveline protection. TrakMotive manufactures this AAR CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration during acceleration from a damaged axle shaft
- Torn boots that expose the joint to contamination
- Axle noise caused by internal joint wear
- Loss of driveline smoothness on the front left side
Installation Notes
Verify the axle nut thread size, hex size, and locking style before installation. Confirm front left placement and match the OE AAR design to the vehicle’s original axle configuration. Inspect related seals, hubs, and suspension components during service to help ensure a proper repair.
Quality Assurance
TrakMotive backs this HO-86050 CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Acura | MDX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Acura | MDX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
