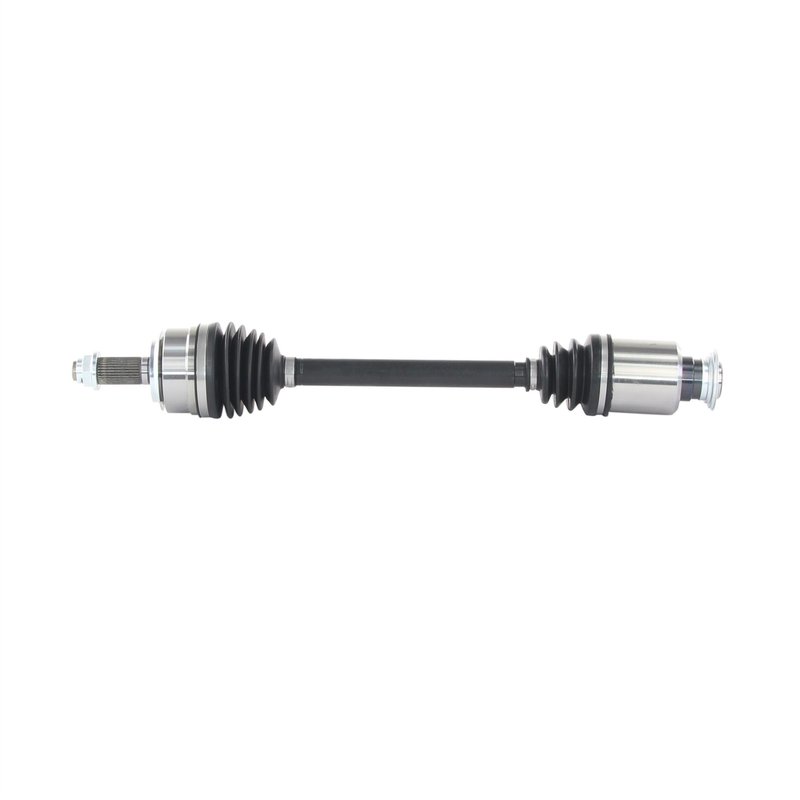

TrakMotive HO-86055 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86055 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.44 |
| Overall Compressed Length (mm) | 671 |
| Overall Extended Length (in) | 28.81 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 4 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Spline connections. Female inboard and spline shaft ends promote secure engagement.
ABS-ready design. Configured for non-ABS applications with no tone ring included.
Cross-references TrakMotive HO-86055 and NCV36233 for the same application. See all 2.
Front Right CV Axle for Honda Ridgeline
The TrakMotive AAR CV Axle Shaft HO-86055 is a premium replacement for the front right position on select Honda Ridgeline models. It is built for 2020-2023 Honda Ridgeline applications and uses a spline-style shaft connection with a conventional outboard joint for direct driveline service.
Key Features
- Fits 2020-2023 Honda Ridgeline, front right
- TrakMotive AAR CV Axle Shaft, part number HO-86055
- Premium grade construction for driveline replacement
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Inboard boot material: thermoplastic
- Outboard boot material: neoprene
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
HO-86055 is engineered as a direct-fit CV axle shaft for the front right side of the Honda Ridgeline. The shaft measures 26.44 inches compressed and 28.81 inches extended, with 31-2T inboard splines and 30 outboard splines. TrakMotive’s AAR CV Axle Shaft line is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices, and the brand notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Replacing a worn or noisy front right CV axle on a Honda Ridgeline
- Addressing clicking during turns caused by CV joint wear
- Restoring smooth power transfer through the front driveline
- Correcting vibration from a damaged or imbalanced axle shaft
- Servicing a leaking or deteriorated axle boot assembly
Installation Notes and Tips
Fits 2020-2023 Honda Ridgeline, front right. Before installation, inspect the intermediate shaft for damage and replace it if needed, as recommended for CV axle service on this application. Verify spline count, axle nut thread size, and position before installation to confirm proper match. Use the included axle nut and follow vehicle-specific torque procedures during assembly.
Quality Assurance
TrakMotive manufactures this AAR CV Axle Shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. Part number HO-86055 is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Honda | Ridgeline | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Honda | Ridgeline | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Honda | Ridgeline | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | Ridgeline | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
