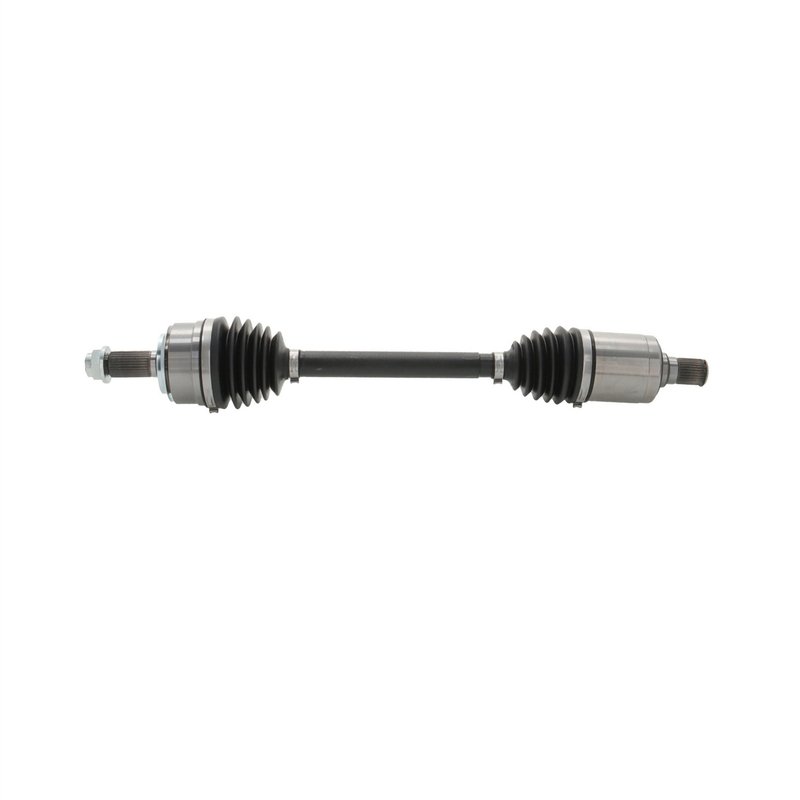

TrakMotive HO-86059 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86059 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.94 |
| Overall Compressed Length (mm) | 684 |
| Overall Extended Length (mm) | 748 |
| Overall Extended Length(In) | 29.44 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 2 vehicles |
Premium grade. Built with thermoplastic boots for durable joint protection.
Spline connection. Male inboard joint and conventional outboard joint for dependable power transfer.
Axle nut included. Hex nut with stake locking for secure installation.
Cross-references TrakMotive HO-86059 and NCV36232 for the same application. See all 2.
Honda Ridgeline Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86059 is built for 2020-2021 Honda Ridgeline front left applications with OE AAR design. It is a premium driveline replacement for restoring smooth power transfer in the front axle assembly.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific fitment and OE-style construction for direct replacement needs. Part number HO-86059 is engineered for the front left position on the Honda Ridgeline and includes the axle nut specified for this application.
Key Features
- Fits 2020-2021 Honda Ridgeline, front left
- OE AAR design for the listed application
- Premium-grade CV axle shaft
- 31 inboard splines and 30 outboard splines
- Thermoplastic boots on the inboard and outboard joints
- Male inboard joint with spline connection style
- Conventional outboard joint type
- Axle nut included: M26x1.5, stake-lock type, 35 mm hex
- No ABS tone ring included
- Overall compressed length: 26.94 in (684 mm)
- Overall extended length: 29.44 in (748 mm)
Detailed Description
HO-86059 is a TrakMotive CV axle shaft for the front left side of the 2020-2021 Honda Ridgeline. It uses an OE AAR design and the listed spline counts, boot materials, and axle nut specifications to match the original driveline layout for this vehicle. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Restores driveline operation after a worn or noisy CV axle
- Addresses clicking or popping during turns
- Helps correct vibration from a damaged axle shaft
- Replaces a torn boot or contaminated CV joint assembly
- Supports repair of axle nut or spline wear at the front left corner
Installation Notes and Tips
Verify front left fitment against the vehicle’s original axle configuration before installation. Confirm axle nut thread size, hex size, and overall length match the removed part. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted by the vehicle setup.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and consistent product quality.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Honda | Ridgeline | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Honda | Ridgeline | Front Left | OE AAR design; AAR CV Axle Shaft |
