OE Quality
60-Day Returns
TrakMotivePart #: HO-86086

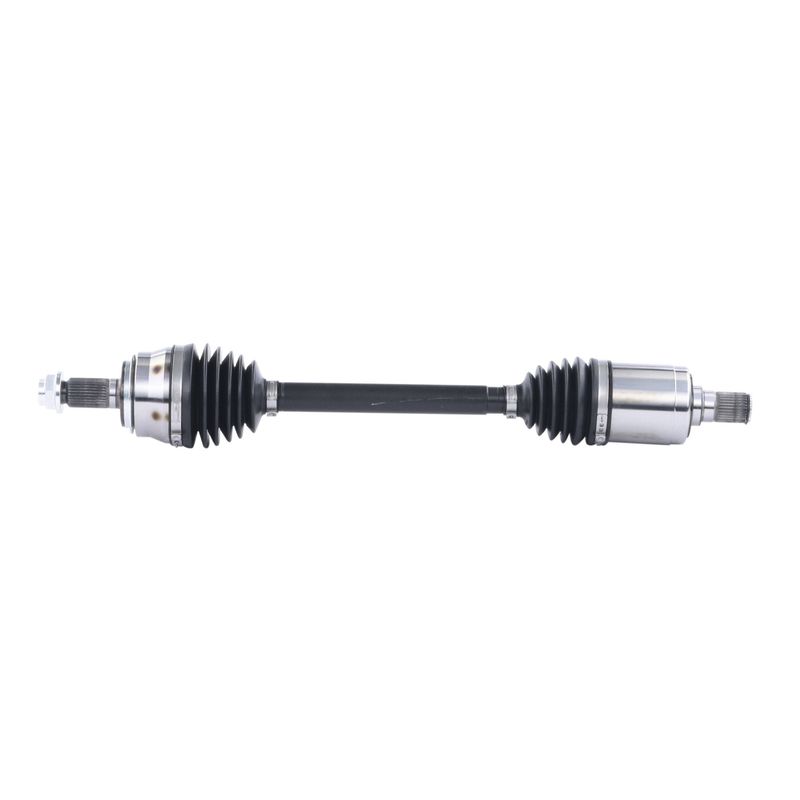

TrakMotive HO-86086 CV Axle Shaft - Front Left
21 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$137.66Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front Left
Fitment: Acura and Honda, MDX, Passport, and Pilot
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive HO-86086 CV Axle Shaft - Front Left
| Brand | TrakMotive |
|---|---|
| Part Number | HO-86086 |
| Position | AAR CV Axle Shaft, Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.94 |
| Overall Compressed Length (mm) | 685 |
| Overall Extended Length (in) | 29.44 |
| Overall Extended Length (mm) | 747 |
| Overall Extended Length(In) | 29.44 |
This part fits 21 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2026 | Honda | Pilot | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2025 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2025 | Honda | Pilot | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2024 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2023 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2022 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2022 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft | ||
| 2021 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2021 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft | ||
| 2020 | Acura | MDX | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft | |
| 2020 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2020 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft | ||
| 2019 | Acura | MDX | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft | |
| 2019 | Honda | Passport | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2019 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft | ||
| 2018 | Acura | MDX | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft | |
| 2018 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft | ||
| 2017 | Acura | MDX | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft | |
| 2017 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft | ||
| 2016 | Acura | MDX | Front Left | OE AAR design; AAR CV Axle Shaft | |||
| 2016 | Honda | Pilot | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
HO-86086
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
