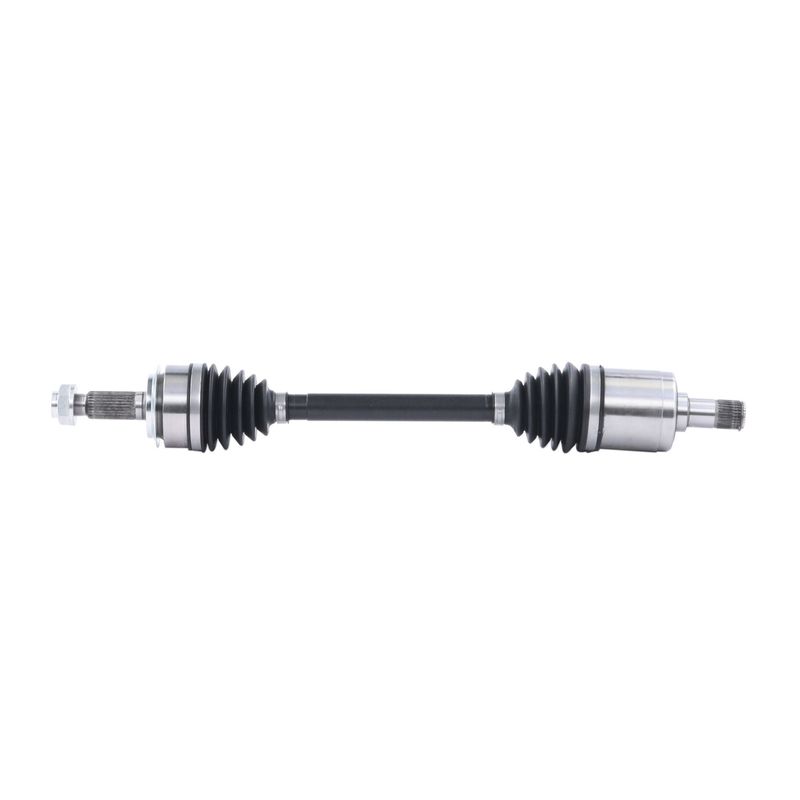

TrakMotive HO-86094 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86094 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.81 |
| Overall Compressed Length (mm) | 656 |
| Overall Extended Length (In) | 28 |
| Overall Extended Length (mm) | 711 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura and Honda · 5 vehicles |
OE-style design. Built for direct driveline replacement in select applications.
Spline-connected shafts. 29-spline inboard and 28-spline outboard interfaces for precise fit.
Warranty included. Backed by a limited lifetime warranty and certified manufacturing standards.
Cross-references TrakMotive HO-86094 for the same application. See all 1.
Overview
The TrakMotive AAR CV Axle Shaft, part number HO-86094, is a direct driveline replacement for select front left applications. It is built with a spline-connected inboard and outboard design, a conventional outboard joint, and no ABS tone ring.
Compatible with Honda Civic and Acura Integra applications listed below, this CV axle shaft is specified for non-ABS use unless otherwise noted. The HO-86094 also includes a stake-lock axle nut with M24x1.5 thread size.
Key Features
- AAR CV axle shaft for select driveline applications
- 29-spline inboard connection and 28-spline outboard connection
- Conventional outboard joint design
- No ABS tone ring included
- Includes axle nut with hex head and stake locking type
- Overall compressed length: 25.81 in. / 656 mm
- Overall extended length: 28 in. / 711 mm
Detailed Description
The HO-86094 is part of TrakMotive’s AAR CV Axle Shaft line, built for applications that call for a specific axle geometry and spline count. Its male inboard joint uses a spline connection, while the outboard side uses a conventional spline connection for a precise driveline interface. This part number, HO-86094, is listed for 2022-2024 Honda Civic front left, 2023 Acura Integra front left, and 2024 Acura Integra front left applications.
This part cross-references TrakMotive HO-86094 for the same application.
What It Is Used For
- Restoring driveline transfer when an axle shaft is worn or damaged
- Addressing clicking or vibration caused by CV joint wear
- Replacing a shaft with incorrect spline count or length
- Correcting fitment issues on non-ABS axle applications
- Replacing a missing or damaged axle nut during service
Installation Notes and Tips
Verify the vehicle’s ABS and non-ABS configuration before installation. Confirm spline counts, compressed length, and axle nut thread size against the removed part. The included axle nut uses a 36 mm hex size and stake locking design.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as part of a company certified to ISO 9001:2008 and TS 16949:2009 standards. The product is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Acura | Integra | — | Manual | — | — | Front Left | w/o Sport Line; AAR CV Axle Shaft |
| 2024 | Honda | Civic | Si | Manual | 1.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Acura | Integra | — | Manual | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Honda | Civic | Si | Manual | 1.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Honda | Civic | Si | Manual | 1.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
