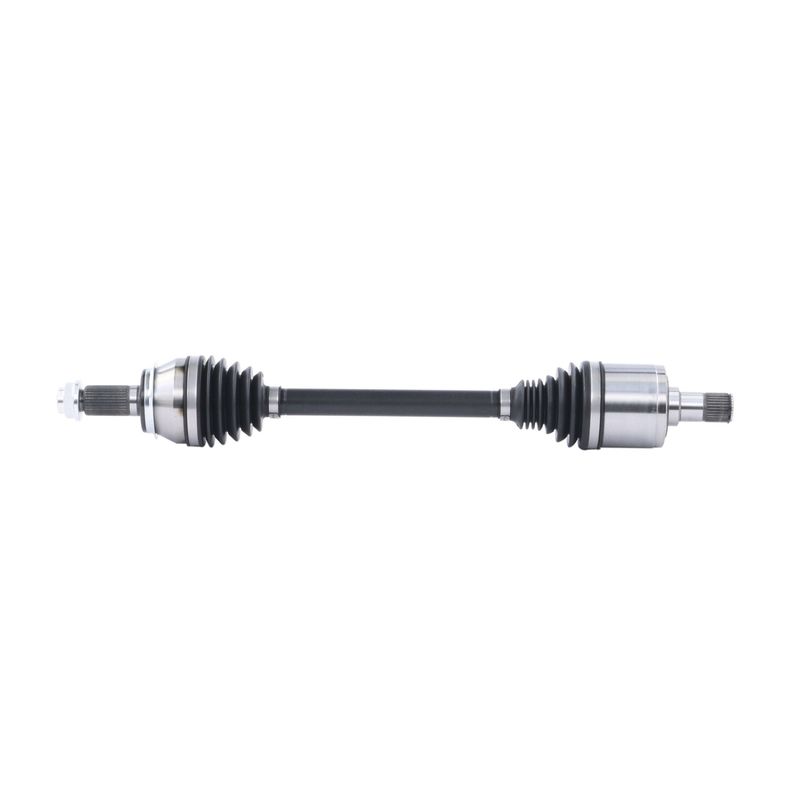

TrakMotive HO-86095 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86095 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.81 |
| Overall Compressed Length (mm) | 681 |
| Overall Extended Length (in) | 28.625 |
| Overall Extended Length (mm) | 727 |
| Product line | CV Axle Shaft |
| Fits | Acura and Honda · 3 vehicles |
Direct replacement. CV axle shaft for standard-duty driveline service.
Includes axle nut. Stake-lock design with M26 x 1.5 thread and 35 mm hex.
Quality certified. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86095 for the same application. See all 1.
CV Axle Shaft for Honda and Acura
This TrakMotive CV axle shaft is built for direct replacement in standard-duty driveline service. It matches the application with a splined male inboard connection, a conventional outboard joint, and the included axle nut specified for the assembly.
Key Features
- CV axle shaft for driveline replacement service
- Splined inboard and outboard shaft connections for secure engagement
- Conventional outboard joint design
- ABS tone ring not included for non-ABS applications
- Includes axle nut with M26 x 1.5 thread size and 35 mm hex
- TrakMotive HO-86095 part number for ordering reference
Detailed Description
TrakMotive HO-86095 is a CV axle shaft engineered for compatible front-left applications on the Honda Civic and Acura Integra. The shaft uses 31 inboard splines and 32 outboard splines, with an overall compressed length of 26.81 inches and an extended length of 28.625 inches. The axle nut is included and uses a stake locking type, which supports proper retention during service. TrakMotive HO-86095 is a practical replacement choice when restoring driveline function on these vehicles.
This part cross-references TrakMotive HO-86095 for the same application.
Common Uses
- Restores power transfer through a worn or damaged axle shaft
- Addresses clicking or binding caused by CV joint wear
- Replaces a shaft with damaged splines or connection points
- Helps correct vibration related to axle wear or imbalance
Installation Notes
Fits 2024 Acura Integra, front left. Fits 2023-2024 Honda Civic, front left. Verify spline count, compressed length, and axle nut specifications before installation. This axle is listed for standard-duty replacement service and is intended for non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this axle shaft. The company is certified to ISO 9001:2008 and TS 16949:2009 quality standards.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Acura | Integra | Type S | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2024 | Honda | Civic | Type R | Manual | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Honda | Civic | Type R | Manual | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
