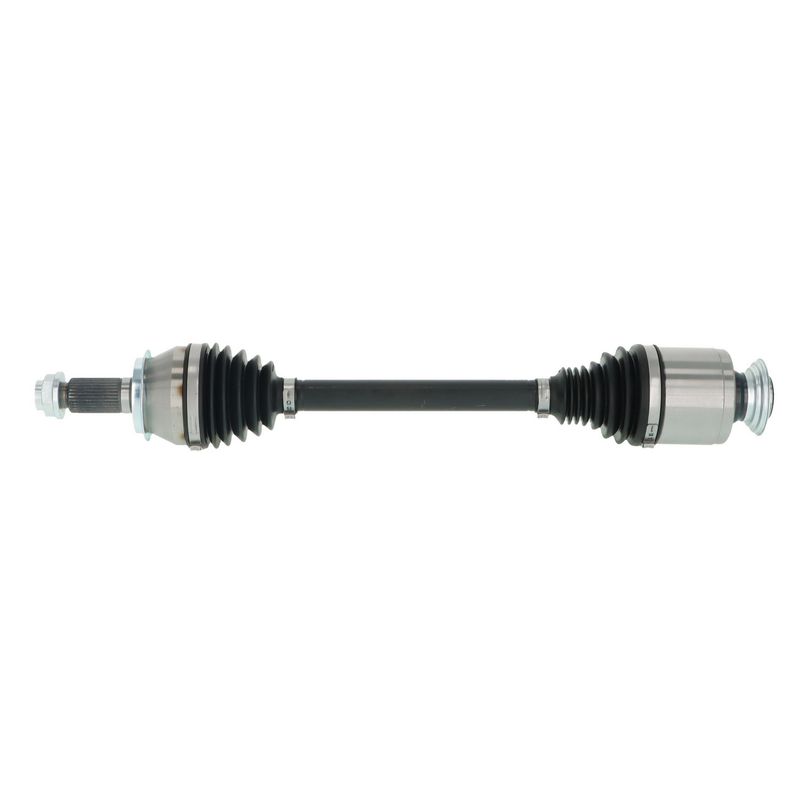

TrakMotive HO-86097 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86097 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.06 |
| Overall Compressed Length (mm) | 637 |
| Overall Extended Length (In) | 27 |
| Overall Extended Length (mm) | 686 |
| Product line | CV Axle Shaft |
| Fits | Honda · 3 vehicles |
OE-style replacement. Built as a direct-service CV axle shaft for standard-duty driveline repair.
Thermoplastic boots. Boot material helps shield the joints from contamination and moisture.
Axle nut included. Supplied with M26x1.5 thread size and stake locking design.
Cross-references TrakMotive HO-86097 for the same application. See all 1.
CV Axle Shaft for Honda Civic
This TrakMotive CV axle shaft is built for standard-duty replacement service on compatible Honda Civic applications. It is a front right fitment for 2023-2025 Honda Civic models and is identified by part number HO-86097.
Key Features
- Fits 2023-2025 Honda Civic, front right.
- Thermoplastic boots help protect the joints from road debris and moisture.
- Includes an axle nut with M26x1.5 thread size and stake locking type.
- Female inboard joint with spline connection for direct driveline engagement.
- Conventional outboard joint design for replacement use.
Product Details
TrakMotive HO-86097 is a CV axle shaft for the front right position on 2023-2025 Honda Civic models. The shaft uses a 31-2T inboard spline count and 32 outboard splines, with overall compressed length of 25.06 inches and extended length of 27 inches. The axle is supplied with no ABS tone ring and is listed for non-ABS applications unless otherwise noted. If you are replacing a worn Honda Civic CV axle shaft, HO-86097 provides the fitment and connection details needed for a direct service replacement.
This part cross-references TrakMotive HO-86097 for the same application.
Common Replacement Issues
- Clicking or popping during turns from a worn CV joint.
- Vibration under acceleration caused by axle wear or imbalance.
- Grease leakage from damaged joint boots.
- Driveline noise from spline or joint wear.
Installation Notes
Verify the axle nut thread size, spline count, and front right fitment before installation. Confirm whether the vehicle uses a non-ABS application, since this axle is listed without an ABS tone ring. Always inspect related seals, hubs, and mounting points during service.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this axle shaft. The company also states ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2025 | Honda | Civic | Type R | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2024 | Honda | Civic | Type R | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Honda | Civic | Type R | Front Right | Standard Duty Replacement; CV Axle Shaft |
