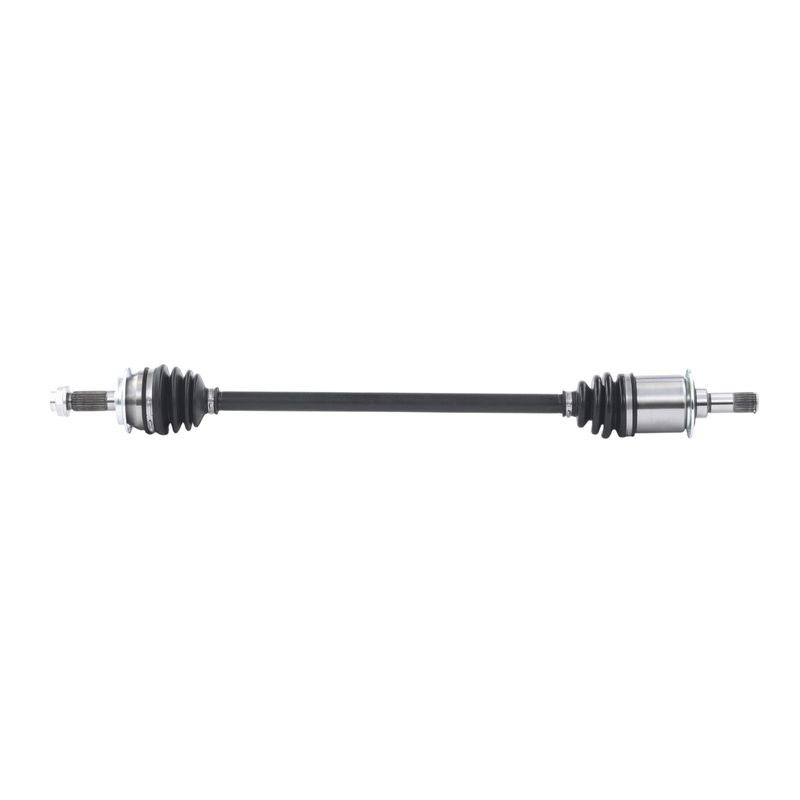

TrakMotive HO-86100 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-86100 |
|---|---|
| Position | Rear Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 31.56 |
| Overall Compressed Length (mm) | 801 |
| Overall Extended Length (in) | 33.38 |
| Overall Extended Length (mm) | 848 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
Premium-grade replacement. Built as a CV axle shaft for driveline service and repair.
Neoprene boot materials. Inboard and outboard boots help protect the joints from contamination.
Axle nut included. Supplied with a stake-locking nut for a more complete service fit.
Cross-references TrakMotive HO-86100 for the same application. See all 1.
Overview
TrakMotive HO-86100 is a CV axle shaft for the rear right position on select Honda CR-V applications. It is built as a premium driveline replacement with a neoprene boot design and a supplied axle nut for a more complete service fit.
Fits 2002-2006 Honda CR-V, rear right. This part cross-references TrakMotive HO-86100 for the same application.
Key Features
- Premium-grade CV axle shaft for driveline service
- Neoprene inboard and outboard boot materials for joint protection
- 23-spline inboard and 23-spline outboard connection design
- Includes axle nut with 32 mm hex size and M22 x 1.5 thread
- Built for non-ABS applications unless otherwise noted
Product Details
This TrakMotive CV axle shaft is engineered for the rear right side of compatible Honda CR-V models and is identified by part number HO-86100. The shaft uses a conventional outboard joint, a male inboard joint, and spline-based inboard connection styling to match the listed application. Overall compressed and extended lengths are specified to support correct driveline geometry during replacement.
For buyers searching for a Honda CR-V rear right CV axle shaft, HO-86100 provides the fitment and component details needed for a direct service replacement. The included axle nut uses a stake locking type, and the assembly is intended for non-ABS applications unless the vehicle listing states otherwise.
Common Issues This Part Addresses
- Clicking or popping from a worn CV joint
- Vibration caused by a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive play from spline or joint wear
- Axle nut service replacement during driveline repair
Installation Notes
Verify rear right fitment, axle length, spline count, and ABS requirements before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Professional installation is recommended for proper driveline alignment and torque procedures.
Quality Assurance
TrakMotive lists this axle shaft as a premium-grade replacement and states that the company is ISO 9001:2008 and TS 16949:2009 certified. The product is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Honda | CR-V | 4WD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Honda | CR-V | 4WD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2004 | Honda | CR-V | 4WD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Honda | CR-V | 4WD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2002 | Honda | CR-V | 4WD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
