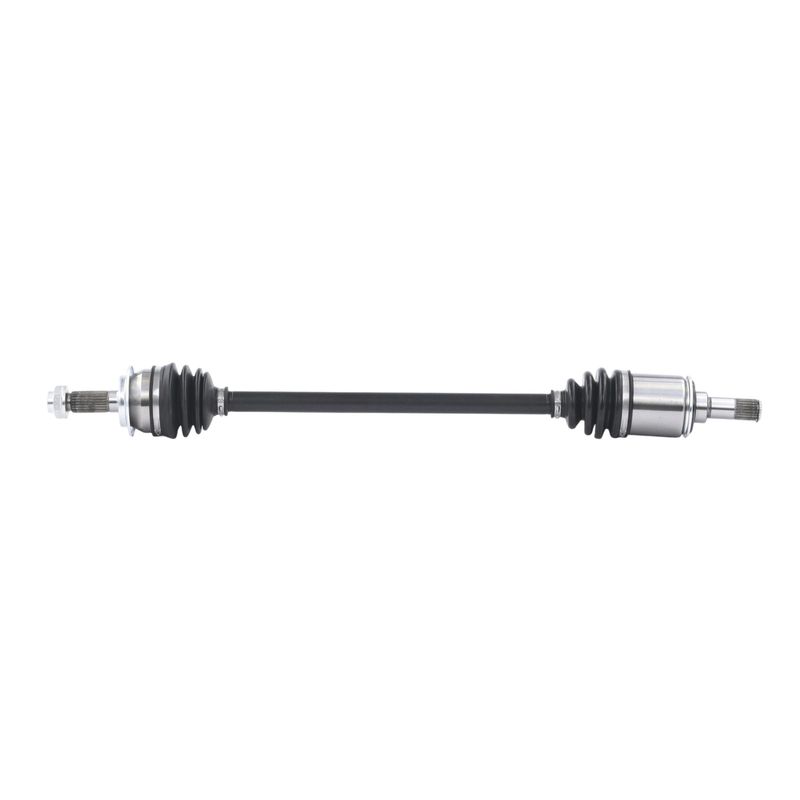

TrakMotive HO-86101 CV Axle Shaft - Rear Left
| Brand | TrakMotive HO-86101 |
|---|---|
| Position | Rear Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.5 |
| Overall Compressed Length (mm) | 750 |
| Overall Extended Length (in) | 31.38 |
| Overall Extended Length (mm) | 797 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
OE-style service part. Premium CV axle shaft for driveline replacement work.
Service-ready hardware. Axle nut is included with M22x1.5 thread size.
Neoprene boot construction. Built with inboard and outboard joint boot material for added durability.
Cross-references TrakMotive HO-86101 for the same application. See all 1.
Overview
TrakMotive HO-86101 is a premium CV axle shaft for standard-duty replacement applications. It is built for the rear left position on compatible Honda CR-V models and includes an axle nut for service-ready installation.
Key Features
- Fits 2002-2006 Honda CR-V, rear left.
- Premium-grade CV axle shaft for driveline service.
- Neoprene boots on the inboard and outboard joints.
- 23-spline inboard and outboard connection design.
- Includes a hex axle nut with M22x1.5 thread size.
- No ABS tone ring included for non-ABS applications.
Detailed Description
The TrakMotive HO-86101 CV axle shaft is engineered for Honda CR-V rear left fitment across the 2002-2006 model years. It uses a conventional outboard joint, a male inboard joint, and spline-style inboard connection details to match the original driveline layout for standard-duty replacement service. The HO-86101 also features neoprene boot material and a premium grade construction, with compressed and extended lengths listed at 29.5 inches and 31.38 inches.
This part cross-references TrakMotive HO-86101 for the same application.
For Honda CR-V owners replacing a worn axle shaft, HO-86101 provides the fitment and hardware details needed for a direct service match. The axle nut is included, and the assembly is specified without an ABS tone ring, which is important for non-ABS applications.
Common Replacement Needs
- Clicking or popping during turns from a worn CV joint.
- Vibration under acceleration caused by axle wear.
- Torn axle boots that expose the joint to contamination.
- Excessive driveline play or noise from a damaged shaft.
- Service replacement after axle seal or joint failure.
Installation Notes
Verify rear left fitment before installation and confirm the vehicle uses a non-ABS axle application. Match the axle nut thread size, hex size, and locking style to the original service requirements. Inspect related suspension and hub components during axle replacement to avoid repeat driveline noise.
Quality Assurance
TrakMotive identifies this axle shaft as a premium-grade component and states that its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certification. The product is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Honda | CR-V | 4WD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Honda | CR-V | 4WD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2004 | Honda | CR-V | 4WD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Honda | CR-V | 4WD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2002 | Honda | CR-V | 4WD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
