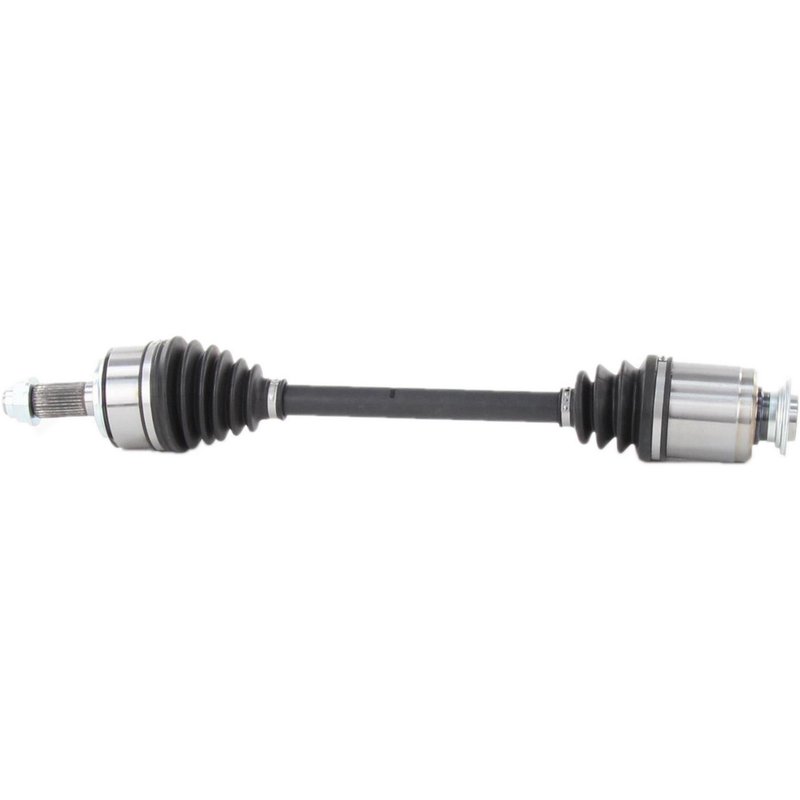

TrakMotive HO-8635 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8635 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.52 |
| Axle Nut Height (mm) | 13.2 |
| Axle Nut Hex Size (in) | 1.34 |
| Axle Nut Hex Size (mm) | 34 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.55 |
| Axle Nut Length (mm) | 39.26 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.3 |
| Overall Compressed Length (mm) | 668 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 6 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the required hardware.
Cross-references TrakMotive HO-8635 and 44305TLAA01 for the same application. See all 2.
Honda CR-V Front Right CV Axle Shaft
TrakMotive HO-8635 is a new front right CV axle shaft for select Honda CR-V applications. It is built for 2017-2022 Honda CR-V models and includes the axle nut for a direct replacement on the specified position.
Key Features
- Fits 2017-2019 Honda CR-V, front right
- Fits 2020-2022 Honda CR-V, front right
- New CV axle shaft for driveline and axle service
- Neoprene boot material for joint protection
- Female inboard joint with spline shaft connection
- Conventional outboard joint with spline shaft connection
- Axle nut included; M24 x 1.5 thread, 34 mm hex size
- No ABS tone ring included
- Overall compressed length: 26.3 in. (668 mm)
Detailed Description
TrakMotive HO-8635 is an AAR CV Axle Shaft engineered for the front right position on select Honda CR-V models. This axle uses a female inboard joint, a conventional outboard joint, and spline connections at both ends for the listed applications. The design includes a neoprene boot and a standard axle nut, with no ABS tone ring included. For 2017-2019 Honda CR-V applications, the axle reflects an updated design. For 2020-2022 Honda CR-V service, TrakMotive notes that the intermediate shaft should be inspected for damage and replaced if necessary during CV axle replacement. This part cross-references Honda 44305TLAA01 for the same application. HO-8635 is the part number to reference when ordering or verifying the correct front right Honda CR-V axle shaft.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise caused by spline or joint wear
- Front right axle failure on listed Honda CR-V models
Installation Notes and Tips
Confirm front right fitment before installation and verify axle nut thread size, hex size, and overall length against the original part. Inspect the intermediate shaft for damage on 2020-2022 Honda CR-V applications and replace it if needed. Because this axle does not include an ABS tone ring, compare the vehicle’s original configuration before service. HO-8635 should be matched to the listed Honda CR-V years and position only.
Quality Assurance
TrakMotive identifies this as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The AAR CV Axle Shaft line is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Honda | CR-V | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Honda | CR-V | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | CR-V | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Honda | CR-V | 1.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | CR-V | 1.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | CR-V | 1.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| No rows match your filter. | ||||||
