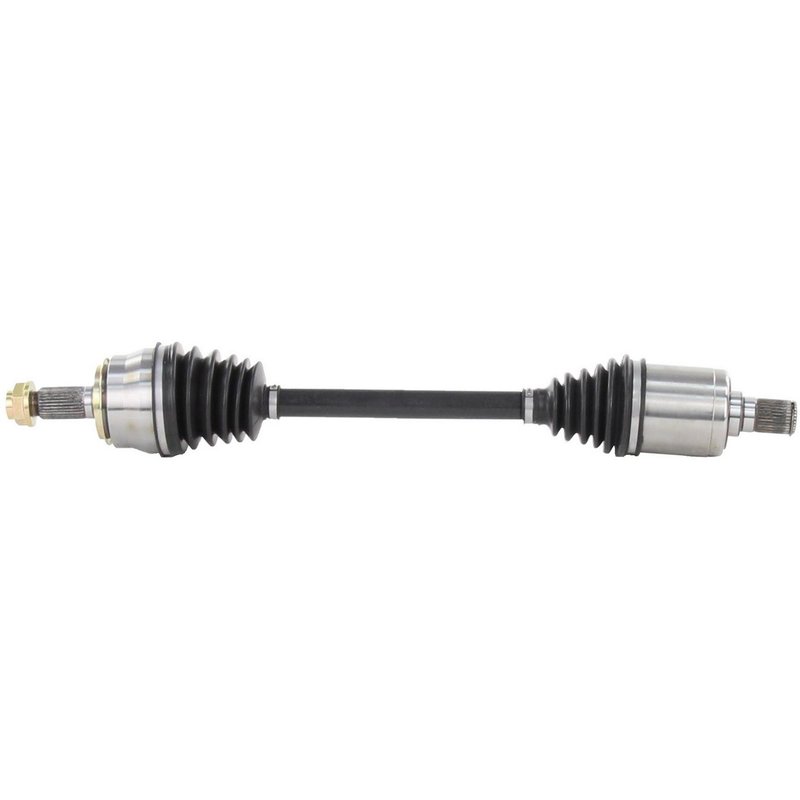

AAR CV Axle ShaftTrakMotive HO-8645 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8645 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.89 |
| Overall Compressed Length (mm) | 683 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura and Honda · 20 vehicles |
New CV axle shaft. Built as a fresh replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Spline connections. 31 inboard and 30 outboard splines for secure engagement.
Cross-references TrakMotive HO-8645 and 44306TZ5A31 for the same application. See all 2.
$137.54Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
Front Left CV Axle Shaft for Honda and Acura
TrakMotive HO-8645 is a new AAR CV axle shaft for the front left position on select Honda and Acura applications. It is built for OE AAR design fitment on listed vehicles and includes a stake-lock axle nut for the specified application.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: HO-8645
- Front left CV axle shaft for listed Honda Passport, Honda Pilot, and Acura MDX applications
- New construction with neoprene boot material
- Inboard joint type: male
- Inboard shaft connection style: spline with 31 inboard splines
- Outboard joint type: conventional with 30 outboard splines
- Axle nut included; M26 x 1.5 thread, 34.6 mm hex size, stake locking type
- No ABS tone ring included
- Overall compressed length: 26.89 in. (683 mm)
Product Details
TrakMotive HO-8645 is an OE-style replacement CV axle shaft for front left driveline service on select 2016-2022 Honda Pilot, 2019-2022 Honda Passport, and 2016-2020 Acura MDX models. The AAR CV axle shaft configuration follows the listed OE design requirements, making it a direct-match service part for the specified applications. This part cross-references Honda 44306TZ5A31 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn or deteriorated boot material that exposes the joint to contamination
- Excessive play in the front left driveline assembly
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
- Verify front left fitment by year, make, model, and OE AAR design before installation.
- Confirm axle nut thread size, hex size, and locking style match the vehicle specification.
- Inspect related seals, hub components, and suspension hardware during axle replacement.
- Use the correct torque procedure for the axle nut and follow the vehicle service manual.
- Check ABS-related components separately, since no ABS tone ring is included.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The manufacturer also backs the part with a limited lifetime warranty.
Fitment
- Fits 2021-2022 Honda Passport, front left, OE AAR design; AAR CV Axle Shaft
- Fits 2020-2022 Honda Pilot, front left, OE AAR design; AAR CV Axle Shaft
- Fits 2020 Acura MDX, front left, OE AAR design; AAR CV Axle Shaft
- Fits 2020 Honda Passport, front left, AAR CV Axle Shaft
- Fits 2016-2019 Acura MDX, front left, Updated Design; AAR CV Axle Shaft
- Fits 2019 Honda Passport, front left, Updated Design; AAR CV Axle Shaft
- Fits 2016-2019 Honda Pilot, front left, Updated Design; AAR CV Axle Shaft
This part fits 20 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2022 | Honda | Passport | — | — | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Honda | Pilot | — | Automatic | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Honda | Passport | — | — | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Honda | Pilot | — | Automatic | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Acura | MDX | — | — | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Honda | Passport | — | Automatic | — | — | Front Left | AAR CV Axle Shaft |
| 2020 | Honda | Pilot | — | Automatic | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Acura | MDX | — | — | 3.5L | V6 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2019 | Honda | Passport | — | Automatic | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2019 | Honda | Pilot | Touring | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2019 | Honda | Pilot | Elite | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Acura | MDX | — | — | 3.5L | V6 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Pilot | Touring | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Pilot | Elite | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Acura | MDX | — | — | 3.5L | V6 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Pilot | Touring | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Pilot | Elite | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Acura | MDX | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Pilot | Touring | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Pilot | Elite | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| No rows match your filter. | ||||||||
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — HO-864544306TZ5A31
