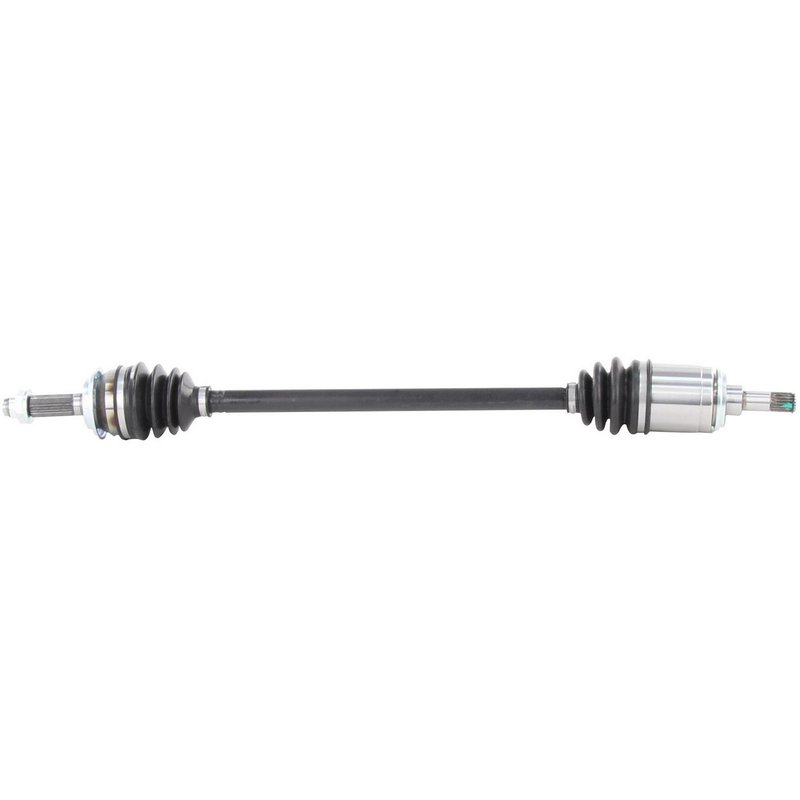

TrakMotive HO-8647 CV Axle Shaft - Rear Left
Rear Left CV Axle Shaft for Honda HR-V
TrakMotive HO-8647 is a new CV axle shaft for the rear left position on select 2016-2018 Honda HR-V models. It is built with a neoprene boot, a spline-style shaft connection, and an included axle nut for a direct replacement on the specified application.
Key Features
- Fits 2016-2018 Honda HR-V, rear left
- TrakMotive CV Axle Shaft, part number HO-8647
- New unit with 30.94 in. overall compressed length
- Neoprene boot material for the CV joint assembly
- Inboard joint type: male
- Inboard shaft connection: spline, 20 inboard splines
- Outboard joint type: conventional with 23 outboard splines
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Honda HR-V and matches the listed fitment for 2016, 2017, and 2018 models. HO-8647 is a direct driveline replacement for the specified application, with OE-style spline connections and a conventional outboard joint design. The axle nut is included, and the assembly uses a hex-head, stake-locking nut with M22 x 1.5 threads.
TrakMotive positions its CV axle shaft line as a new replacement solution backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes. This part cross-references 42311T7D003 for the same application.
What This Part Helps Address
- Clicking or popping noises from a worn CV axle
- Vibration during acceleration or deceleration
- Grease leakage from a damaged CV boot
- Excessive driveline play at the rear left axle location
- Loss of smooth power transfer to the rear wheel
Installation Notes
Verify rear left fitment before installation on your Honda HR-V. Confirm spline count, axle length, and axle nut thread size against the original part. Inspect the hub, seals, and surrounding driveline components during replacement, and torque the included axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive HO-8647 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer states this part line is covered by a limited lifetime warranty.
| Brand | TrakMotive |
| Part Number | HO-8647 |
| Position | CV Axle Shaft, Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.94 |
| Overall Compressed Length (mm) | 786 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Honda | HR-V | Rear Left | CV Axle Shaft |
| 2017 | Honda | HR-V | Rear Left | CV Axle Shaft |
| 2016 | Honda | HR-V | Rear Left | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
