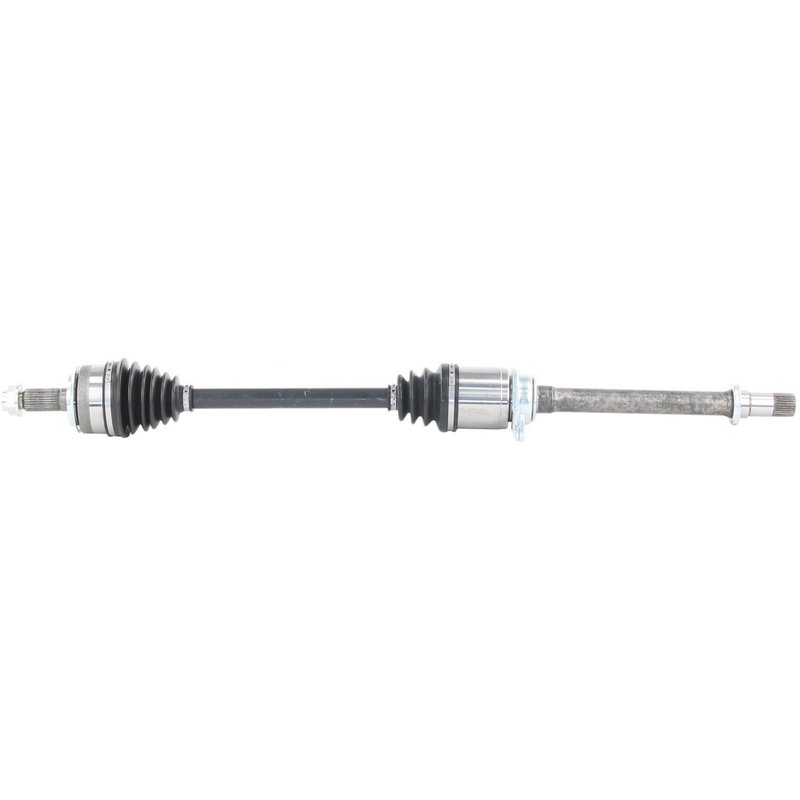

TrakMotive HO-8648 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8648 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male+long |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.84 |
| Overall Compressed Length (mm) | 1012 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 3 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with the hardware needed for installation.
Cross-references TrakMotive HO-8648 and 44305T6ZA01 for the same application. See all 2.
Honda Ridgeline Front Right CV Axle Shaft
TrakMotive HO-8648 is a new CV axle shaft for the front right position on select 2017-2019 Honda Ridgeline models. It is built for direct replacement service and includes the axle nut specified for this application.
Key Features
- Fits 2017-2019 Honda Ridgeline, front right
- TrakMotive AAR CV Axle Shaft line
- New axle shaft with neoprene boot material
- Inboard joint type: male + long
- Inboard shaft connection: spline, 31 splines
- Outboard joint type: conventional with 30 splines
- Overall compressed length: 39.84 in. (1012 mm)
- Axle nut included; hex head, stake locking type, M26 x 1.5 thread
- No ABS tone ring included
Product Details
HO-8648 is a TrakMotive CV axle shaft engineered for the front right side of the Honda Ridgeline in 2017, 2018, and 2019. This part cross-references Honda OE number 44305T6ZA01 for the same application. The AAR CV Axle Shaft line is positioned as a direct-fit driveline replacement, and this unit uses a neoprene boot, spline-style shaft connections, and a conventional outboard joint to match the listed vehicle configuration.
For buyers searching for a 2017-2019 Honda Ridgeline front right CV axle shaft, HO-8648 provides the key dimensions and connection details needed for fitment verification. It is a new part, not remanufactured, and is specified without an ABS tone ring.
Common Problems This Part Can Address
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from a damaged axle shaft
- Torn boot conditions that allow grease loss and contamination
- Excessive play in the front right driveline assembly
- Noise or driveline binding related to a failing CV axle
Installation Notes and Tips
Confirm the vehicle is a 2017-2019 Honda Ridgeline with front right application before ordering HO-8648. Verify axle nut thread size, spline count, and overall compressed length against the removed part. Inspect the hub, seals, and surrounding driveline components during installation, and follow the vehicle service procedure for axle nut staking and torque specifications.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new replacement part and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Honda | Ridgeline | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Ridgeline | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Ridgeline | Front Right | Updated Design; AAR CV Axle Shaft |
