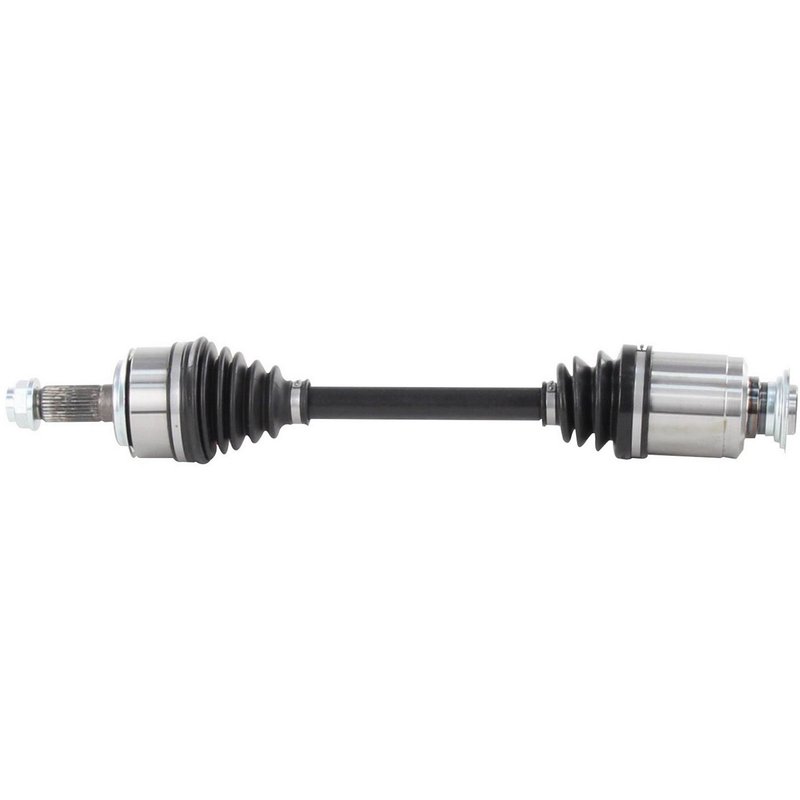

TrakMotive HO-8649 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8649 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.94 |
| Overall Compressed Length (mm) | 608 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 8 vehicles |
New replacement shaft. Direct-fit CV axle shaft for straightforward service.
Neoprene boot. Flexible material helps resist wear in demanding driveline use.
Includes axle nut. Hardware is provided for a more complete installation.
Cross-references TrakMotive HO-8649 and 44305T7WA03 for the same application. See all 2.
Honda HR-V Front Right CV Axle Shaft
Restore driveline performance with the TrakMotive AAR CV Axle Shaft HO-8649 for select Honda HR-V front right applications. This new axle shaft is built for direct replacement use on 2016-2022 Honda HR-V models with the specified front right fitment, including updated-design applications.
Key Features
- TrakMotive AAR CV Axle Shaft, part number HO-8649
- Fits 2016-2019 Honda HR-V, front right
- Fits 2020 Honda HR-V, front right
- Fits 2021-2022 Honda HR-V, front right
- New axle shaft with neoprene boot material
- Female inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with hex head, stake locking type, and M26 x 1.5 thread
- No ABS tone ring included
- Overall compressed length: 23.94 in. (608 mm)
Product Details
The TrakMotive AAR CV Axle Shaft HO-8649 is a front right driveline replacement for Honda HR-V models listed above. It uses a 27-2 spline inboard connection and a 30-spline outboard connection, with a conventional outboard joint and female inboard joint configuration. The axle is supplied new and built to match the specified application, making it a direct-fit option for Honda HR-V front right axle service. This part cross-references OE number 44305T7WA03 for the same application.
The AAR CV Axle Shaft line is positioned for application-specific replacement needs, with fitment and construction details selected to match the vehicle’s original driveline layout. For Honda HR-V owners searching for a front right CV axle shaft, HO-8649 provides the listed dimensions and connection styles needed for the covered model years.
Common Repair Uses
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn boot or grease loss at the CV joint
- Excessive play in the front right axle assembly
- Replacement after driveline damage or high-mileage wear
Installation Notes
Before installation, verify front right fitment by year and model. For 2021-2022 Honda HR-V applications, inspect the intermediate shaft for damage and replace it if needed. Confirm axle nut thread size, spline count, and overall length against the original part before assembly. Because this axle does not include an ABS tone ring, use it only where the vehicle configuration matches the listed application.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. That quality framework supports consistent manufacturing control for Honda HR-V front right axle replacement service. Part number HO-8649 is built as a new replacement axle for the listed applications.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Honda | HR-V | Automatic CVT | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Honda | HR-V | Automatic CVT | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | HR-V | Automatic CVT | Front Right | AAR CV Axle Shaft |
| 2019 | Honda | HR-V | Automatic CVT | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | HR-V | Automatic CVT | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | HR-V | Automatic CVT | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | HR-V | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | HR-V | Automatic CVT | Front Right | Updated Design; AAR CV Axle Shaft |
