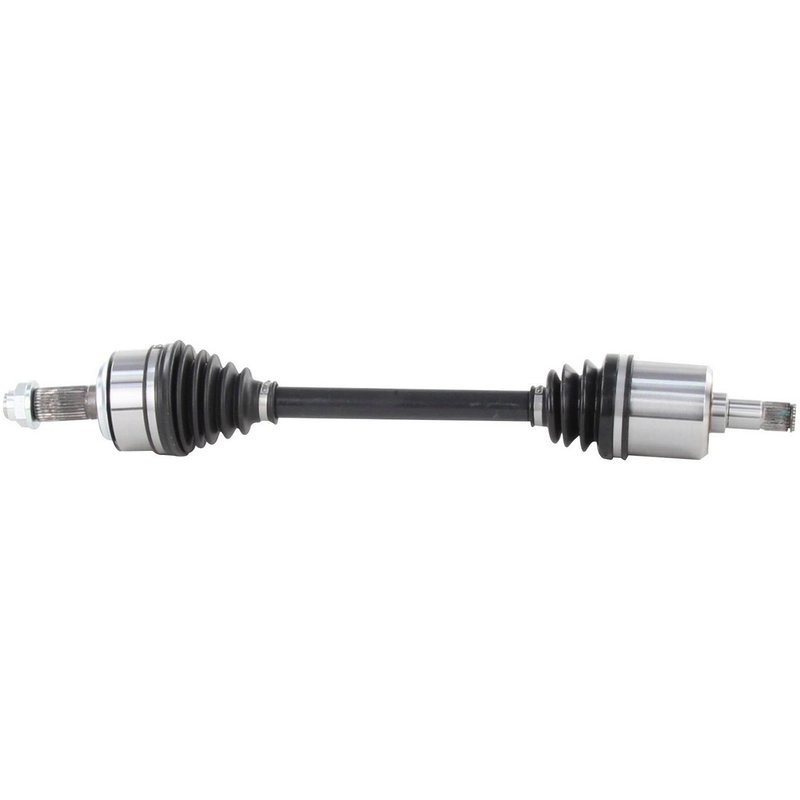

TrakMotive HO-8652 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8652 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.3 |
| Overall Compressed Length (mm) | 668 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 8 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied for a more complete installation.
Cross-references TrakMotive HO-8652, 44306T7WA02 and 44306T7WA03 for the same application. See all 3.
Honda HR-V Front Left CV Axle Shaft
TrakMotive HO-8652 is a new front left CV axle shaft for select Honda HR-V applications. It is built for 2016-2022 Honda HR-V models, including the updated design used on 2016-2019 vehicles and the OE AAR design used on 2020-2022 vehicles.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: HO-8652
- Position: Front left
- New replacement axle shaft
- Inboard joint type: Male
- Inboard shaft connection: Spline, 25 inboard splines
- Outboard joint type: Conventional
- Outboard shaft connection: Spline, 30 outboard splines
- Overall compressed length: 26.3 in (668 mm)
- Boot material: Neoprene
- Axle nut included with stake-style locking type
- Axle nut thread size: M26 x 1.5
- ABS tone ring not included
Product Details
The TrakMotive AAR CV Axle Shaft line is built for direct-fit driveline service on applications that require OE-style geometry and spline count matching. HO-8652 is engineered for the front left side of the Honda HR-V and is listed for both the updated design on 2016-2019 models and the OE AAR design on 2020-2022 models. This Honda HR-V CV axle shaft uses a neoprene boot, a male inboard joint, and a conventional outboard joint to support smooth power transfer through the front driveline.
TrakMotive manufactures this axle as a new replacement part and identifies ISO 9001:1007 and TS 16949:2009 certified company standards in its product literature. This part cross-references Honda OE numbers 44306T7WA02 and 44306T7WA03 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration from a damaged axle shaft
- Torn or leaking CV boot on the front left axle
- Excessive driveline play or noise from spline wear
- Failed axle nut retention after driveline service
Installation Notes
Verify front left fitment by matching the vehicle year, HR-V design revision, spline count, and axle length before installation. Confirm the axle nut thread size is M26 x 1.5 and use the included stake-style axle nut where specified. Because this axle does not include an ABS tone ring, confirm the vehicle does not require one for the application.
Quality Assurance
TrakMotive lists this HO-8652 axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices for this AAR CV axle shaft line.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Honda | HR-V | Automatic CVT | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Honda | HR-V | Automatic CVT | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Honda | HR-V | Automatic CVT | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Honda | HR-V | Automatic CVT | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | HR-V | Automatic CVT | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | HR-V | Automatic CVT | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | HR-V | Automatic | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | HR-V | Automatic CVT | Front Left | Updated Design; AAR CV Axle Shaft |
