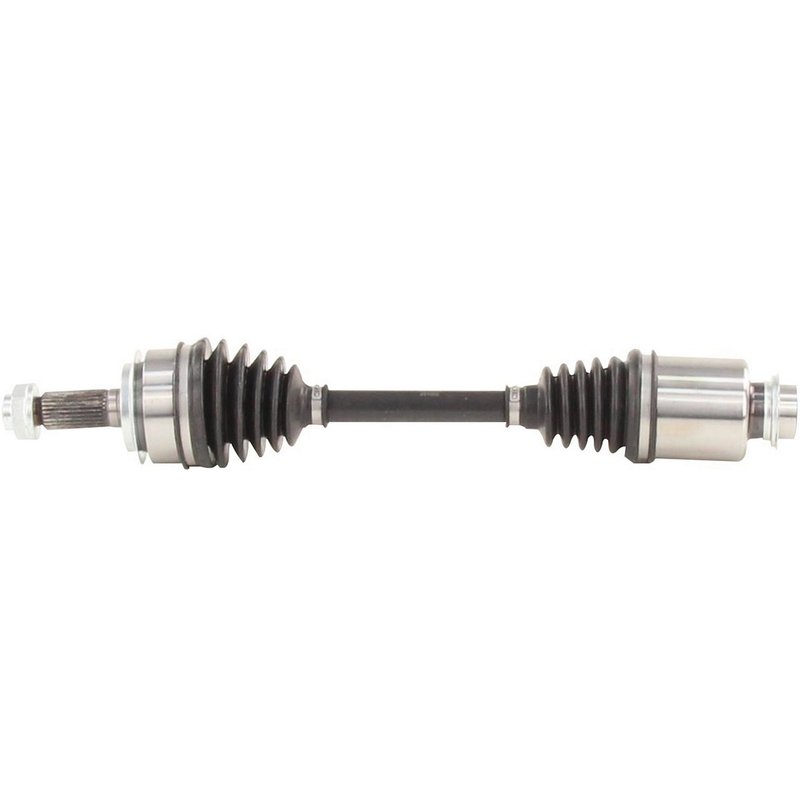

TrakMotive HO-8679 CV Axle Shaft - Front Right

Honda Civic Front Right CV Axle Shaft

TrakMotive HO-8679 is a new CV axle shaft for the front right position on select Honda Civic applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint to support smooth driveline operation in daily driving conditions.

This AAR CV Axle Shaft line focuses on application-specific fitment and OE-style replacement details for import driveline service. For 2016-2020 Honda Civic front right applications, the updated design helps match the vehicle’s original axle configuration, and the 2021 Honda Civic front right listing extends coverage for later models.

Key Features

• Part number HO-8679
• Front right CV axle shaft for Honda Civic applications
• New construction, not remanufactured
• Neoprene boot material for driveline protection
• Female inboard joint with spline shaft connection
• Conventional outboard joint design
• Includes axle nut with M24 x 1.5 thread size
• No ABS tone ring included
• Overall compressed length: 21.69 in. (551 mm)

Detailed Description

TrakMotive HO-8679 is a replacement CV axle shaft engineered for the front right side of select Honda Civic models. It features 27-2 inboard splines, 28 outboard splines, a hex-style axle nut, and a stake-locking nut design. The axle is supplied new and uses a neoprene boot to help protect the joint area during operation. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Fits 2016-2020 Honda Civic, front right. Fits 2021 Honda Civic, front right. Use HO-8679 when replacing a worn or damaged axle on these Honda Civic applications and when matching the listed spline count, compressed length, and joint style is required.

Common Replacement Reasons

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration caused by axle wear
• Grease leakage from a damaged boot
• Noise from a failing front right driveline shaft
• Restoring proper axle engagement after driveline service

Installation Notes

Verify the vehicle’s year, model, and front right position before installation. Confirm spline count, axle nut thread size, and overall compressed length against the original part. The included axle nut uses an M24 x 1.5 thread and a stake-locking design. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive lists this AAR CV Axle Shaft under a limited lifetime warranty and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certification.
