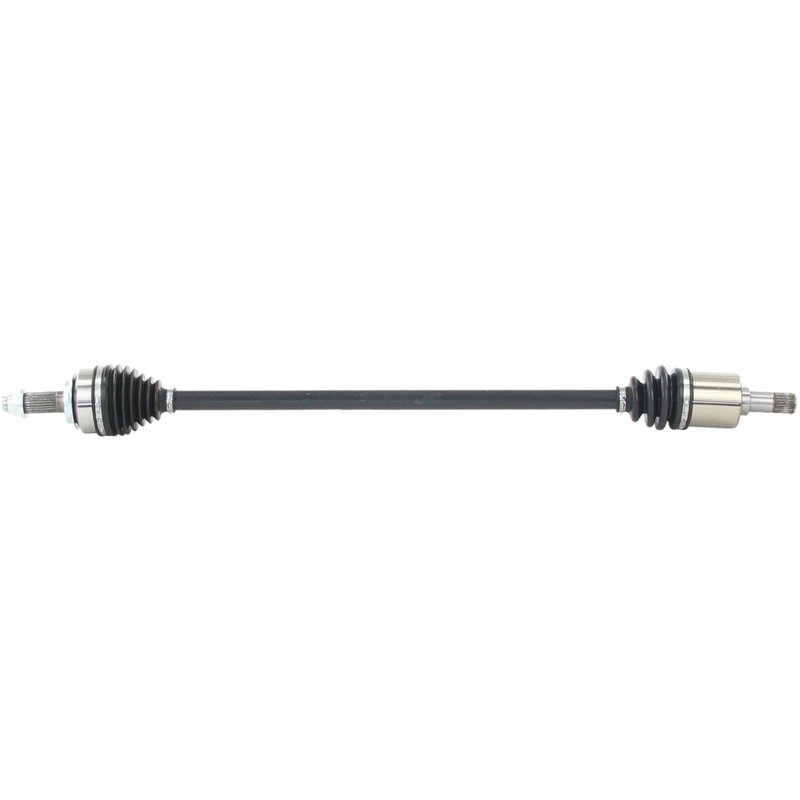

TrakMotive HO-8691 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8691 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 36.42 |
| Overall Compressed Length (mm) | 925 |
| Overall Extended Length (in) | 38.29 |
| Overall Extended Length (mm) | 973 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Neoprene boots. Help protect the joints with durable, flexible coverage.
Premium grade. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references Cardone New 66-4300, TrakMotive HO-8691 and 44305TF0N01 for the same application. See all 3.
Honda Insight Front Right CV Axle Shaft
TrakMotive HO-8691 is a premium CV axle shaft for the front right position on select 2010-2014 Honda Insight models. It is built for standard-duty replacement needs and includes the axle nut specified for the application.
Key Features
- Fits 2010-2014 Honda Insight, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Neoprene boot material on both inboard and outboard joints
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut included with M22x1.5 thread, 32 mm hex/socket size, stake locking type
- Overall compressed length: 925 mm (36.42 in); overall extended length: 973 mm (38.29 in)
Product Details
TrakMotive HO-8691 is a direct-fit CV axle shaft for the Honda Insight front right application. It uses 25 inboard splines and 26 outboard splines, with neoprene boots at both joints to support consistent articulation in the driveline. This part cross-references Cardone New 66-4300 for the same application. TrakMotive identifies this axle as a standard-duty replacement for the 2010-2014 Honda Insight, and the part number HO-8691 is also listed under OE reference 44305TF0N01.
Common Repair Uses
- Restores driveline operation after a worn or noisy CV axle
- Addresses clicking or popping during turns caused by joint wear
- Replaces a damaged axle shaft with spline or boot wear
- Corrects vibration or shudder related to axle imbalance or wear
- Supports repair after grease loss from a compromised CV boot
Installation Notes
Verify front right fitment before installation on the 2010-2014 Honda Insight. Confirm spline counts, axle length, and axle nut thread size against the original part. Use the included axle nut and follow the vehicle service procedure for staking and torque specifications. Inspect hub, bearing, and transmission-side sealing surfaces during replacement to help prevent repeat driveline noise.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Honda | Insight | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Honda | Insight | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2012 | Honda | Insight | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2011 | Honda | Insight | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Honda | Insight | Front Right | Standard Duty Replacement; CV Axle Shaft |
