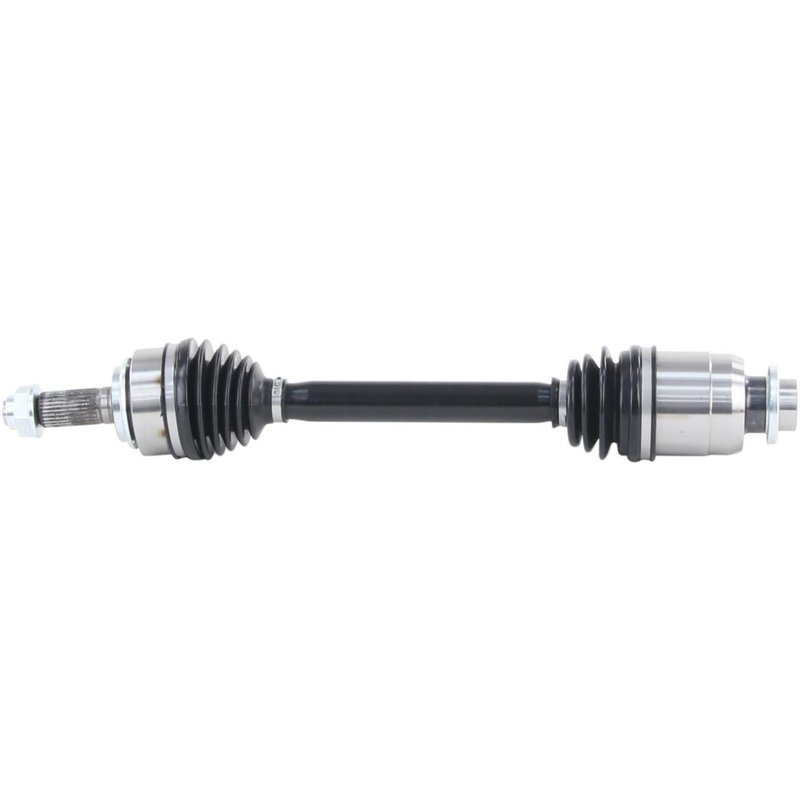

TrakMotive HO-8695 CV Axle Shaft - Rear

Rear CV Axle Shaft for Acura RLX

TrakMotive HO-8695 is a rear CV axle shaft for the 2014-2020 Acura RLX. It is built as an OEM-style axle to help retain original ride quality while restoring driveline function on rear applications.

Key Features

• Fits 2014-2020 Acura RLX, rear
• OEM-style CV axle shaft for rear driveline service
• Premium grade construction
• Neoprene inboard and outboard joint boots
• Female inboard joint with spline connection style
• Conventional outboard joint design
• Includes axle nut with M24x1.5 thread, 36 mm socket size, and stake locking type
• No ABS tone ring included; ABS ring tooth count: 0
• Overall compressed length: 23.11 in (587 mm); overall extended length: 24.84 in (631 mm)

Product Details

TrakMotive HO-8695 is a rear CV axle shaft engineered for Acura RLX models from 2014 through 2020. The axle uses a 29-2T inboard spline count and 28 outboard splines, with neoprene boot material at both joints for durable sealing. This part cross-references Acura OE number 42310TY3A01 for the same application. TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts, and this axle is backed by the brand’s ISO 9001:2008 and TS 16949:2009 certified manufacturing standards.

Common Problems This Part Can Address

• Clicking or popping from a worn rear CV joint
• Vibration during acceleration from a damaged axle shaft
• Grease leakage from torn or deteriorated boots
• Excessive driveline play in the rear axle assembly
• Noise or binding caused by internal CV joint wear

Installation Notes and Tips

Confirm rear fitment by matching the vehicle application, spline counts, and axle dimensions before installation. Replace the axle nut during service when required by the stake-lock design, and torque fasteners to the vehicle manufacturer’s specifications. This axle is listed for non-ABS applications unless otherwise noted, and no ABS tone ring is included.

Quality Assurance

TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. The part is covered by a limited lifetime warranty.
