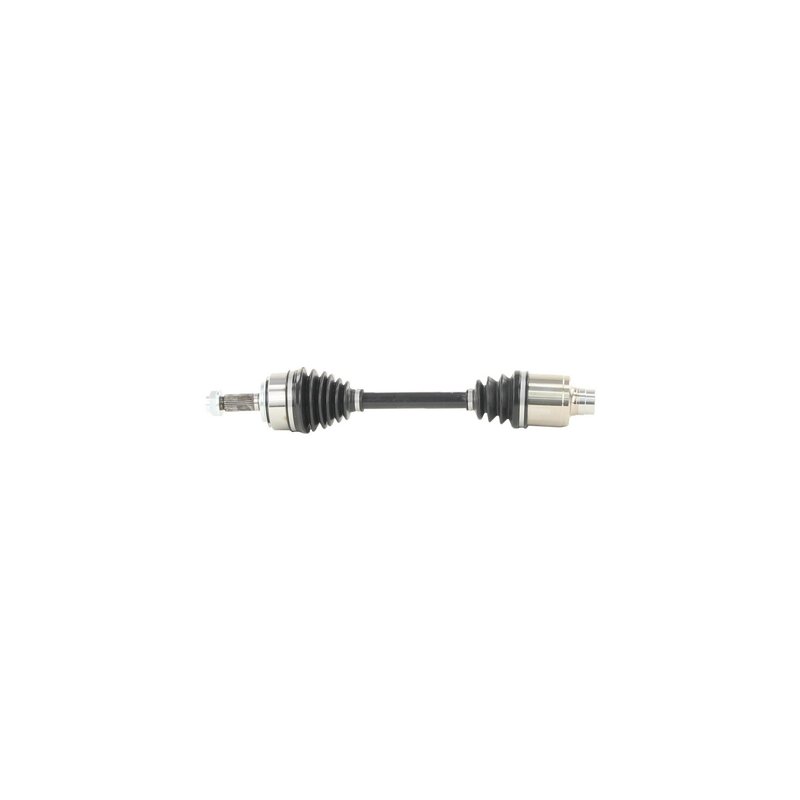

TrakMotive HO-8696 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8696 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.62 |
| Axle Nut Length (mm) | 41.1 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.8 |
| Overall Compressed Length (mm) | 579 |
| Overall Extended Length (in) | 24.7 |
| Overall Extended Length (mm) | 627.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 3 vehicles |
OE direct replacement. New CV axle shaft with spline connections for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO certified company. Built by a manufacturer certified to ISO 9001 and TS 16949 standards.
Cross-references TrakMotive HO-8696 and 44305SDRA00 for the same application. See all 2.
Honda Accord Front Right CV Axle Shaft
TrakMotive HO-8696 is a new CV axle shaft for the front right position on 2005-2007 Honda Accord models with VIN N (5th digit). It is built as an AAR CV Axle Shaft with spline-style shaft connections, a conventional outboard joint, and a female inboard joint for direct driveline replacement.
Key Features
- Fits 2005-2007 Honda Accord, front right
- New CV axle shaft for driveline and axle service
- Inboard shaft connection style: spline
- Outboard shaft connection style: spline
- Inboard joint type: female
- Outboard joint type: conventional
- Neoprene boot material
- Axle nut included with stake-style locking type
- Axle nut thread size: M24*1.5
- No ABS tone ring included
Product Details
TrakMotive HO-8696 is engineered for the front right axle position on the 2005-2007 Honda Accord, with fitment limited to VIN N (5th digit) applications. The axle measures 22.8 inches compressed and 24.7 inches extended, and it uses 27-2T inboard splines and 28 outboard splines. The included axle nut features a 35.6 mm hex size, 23 mm height, and stake locking design. This part cross-references Honda 44305SDRA00 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn axle boot with grease leakage
- Excessive play or noise from a damaged front axle assembly
- Need for a direct replacement on a Honda Accord front right driveline service
Installation Notes
Verify VIN N (5th digit) before ordering to confirm application. Match the axle nut thread size, spline count, and overall length to the original part before installation. Inspect seals, hub condition, and surrounding suspension components during service, and follow the vehicle service procedure for axle nut staking and torque specifications.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer states a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Honda | Accord | Automatic | 3.0L | V6 | ELECTRIC/GAS | Front Right | VIN N (5th digit); AAR CV Axle Shaft |
| 2006 | Honda | Accord | Automatic | 3.0L | V6 | ELECTRIC/GAS | Front Right | VIN N (5th digit); AAR CV Axle Shaft |
| 2005 | Honda | Accord | Automatic | 3.0L | V6 | ELECTRIC/GAS | Front Right | VIN N (5th digit); AAR CV Axle Shaft |
