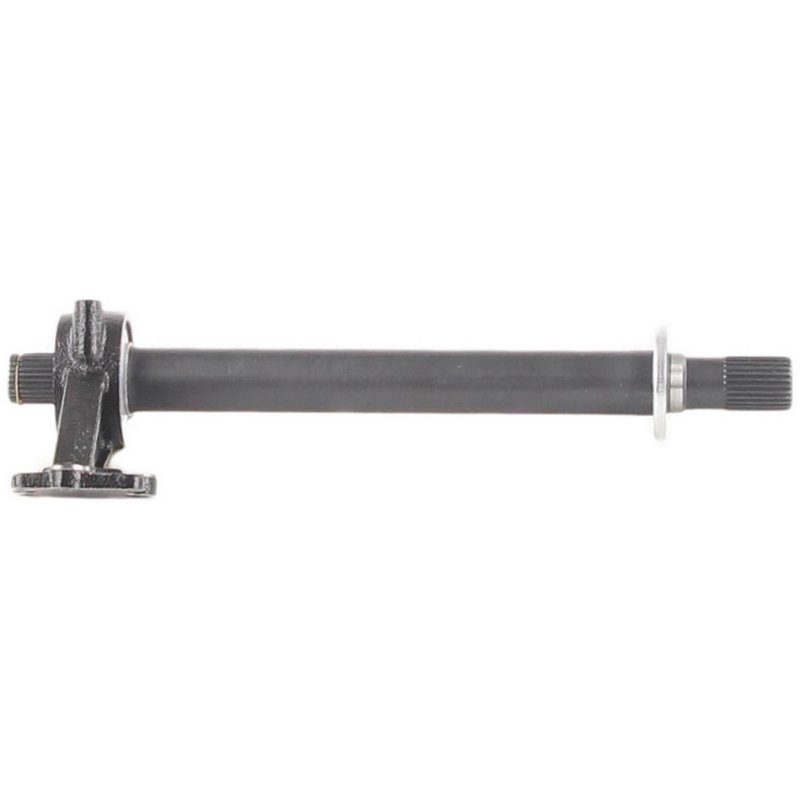

TrakMotive HY-3520 CV Intermediate Shaft - Front Left or Front Right

Overview of TrakMotive CV Intermediate Shaft HY-3520

The TrakMotive CV Intermediate Shaft HY-3520 is designed specifically for Hyundai Santa Fe and Kia Sorento models. This new CV intermediate shaft provides reliable driveline performance with precise fitment and durable construction.

• Compatible with Hyundai Santa Fe and Kia Sorento
• Brand Line: CV Intermediate Shaft
• Axle bolt hex size: 12 mm
• Axle bolt length: 21.5 mm
• Axle bolt thread size: M8*1
• Boot material: Neoprene for enhanced durability
• Number of inboard and outboard splines: 28 each
• Overall compressed length: 421.5 mm (16.59 in)
• Number of bolt holes: 2 (inboard and outboard)
• New, not remanufactured

About the CV Intermediate Shaft Product Line

The TrakMotive CV Intermediate Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This CV Intermediate Shaft HY-3520 is part of that line, offering a direct replacement shaft that meets OEM specifications for Hyundai and Kia vehicles. The line emphasizes quality materials such as neoprene boots and exact spline counts to ensure proper engagement and long service life.

Detailed Product Description

The HY-3520 CV Intermediate Shaft is a critical driveline component that connects the transmission to the wheel hub, allowing for smooth power transfer while accommodating suspension movement. It features 28 splines on both the inboard and outboard ends, ensuring a secure fit with the corresponding components. The neoprene boot protects the joint from contaminants and wear. The shaft includes two bolt holes on both the inboard and outboard joints, secured with M8*1 threaded bolts sized 12 mm hex and 21.5 mm length. This shaft is supplied new, providing a reliable replacement option for Hyundai Santa Fe and Kia Sorento models requiring a CV intermediate shaft.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV intermediate shafts on Hyundai Santa Fe and Kia Sorento
• Eliminates vibration or clicking noises caused by joint wear
• Restores proper driveline alignment and smooth power delivery
• Prevents grease leakage and contamination with durable neoprene boot
• Addresses axle bolt wear or damage requiring new hardware fitment

Installation Notes and Tips

• Ensure compatibility with Hyundai Santa Fe and Kia Sorento models before installation
• Use correct torque specifications for M8*1 axle bolts with 12 mm hex size
• Inspect surrounding components such as CV joints and axle nuts during replacement
• Verify the overall compressed length of 421.5 mm to confirm proper fit
• Replace any damaged or worn hardware to maintain driveline integrity

Quality Assurance and Warranty

The TrakMotive CV Intermediate Shaft HY-3520 is manufactured to meet or exceed OEM standards for fit and function. This new part undergoes quality inspections to ensure durability and performance. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or supplier for exact warranty terms.
