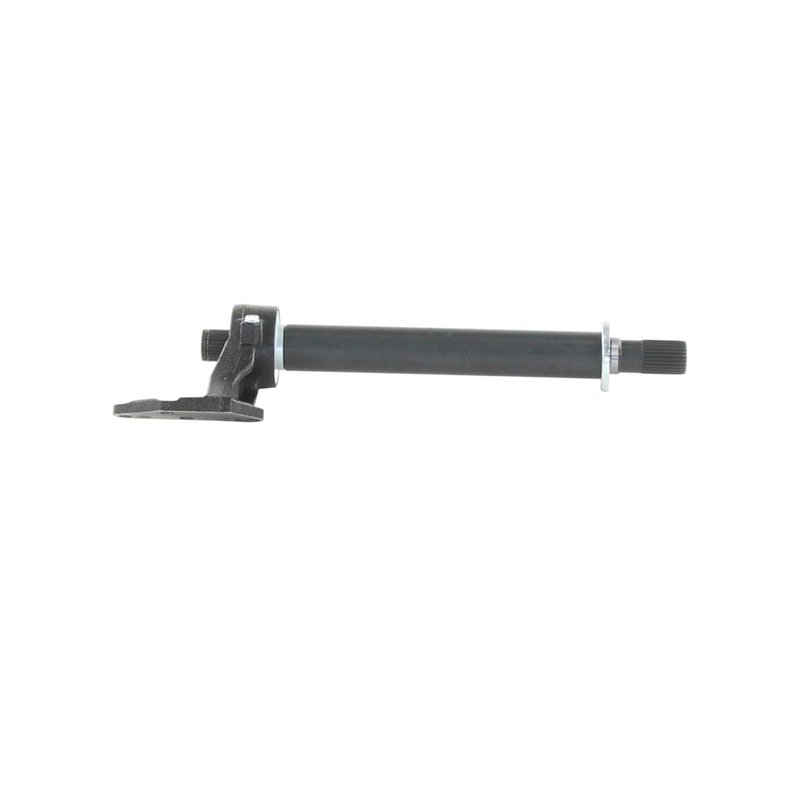

TrakMotive HY-3521 CV Intermediate Shaft - Front
| Brand | TrakMotive HY-3521 |
|---|---|
| Position | Front |
| Axle Nut Included | No |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 16.56 |
| Overall Compressed Length (mm) | 421 |
| Product line | CV Intermediate Shaft |
| Fits | Hyundai · 4 vehicles |
Premium grade. Built for dependable driveline performance.
CV intermediate shaft. A direct-fit driveline component for smooth power transfer.
28-spline design. Matches the shaft connection for secure engagement.
Cross-references TrakMotive HY-3521 for the same application. See all 1.
CV Intermediate Shaft for Hyundai Santa Fe Sport
TrakMotive HY-3521 is a premium CV intermediate shaft for front applications on the 2013-2016 Hyundai Santa Fe Sport. It is built for direct replacement use where the original intermediate shaft has worn splines, vibration, or driveline noise.
Key Features
- Premium-grade CV intermediate shaft for driveline and axle service
- Fits 2013-2016 Hyundai Santa Fe Sport, front
- 28 inboard splines and 28 outboard splines
- Conventional outboard joint type
- Overall compressed length: 16.56 in. (421 mm)
- Axle nut not included
Product Details
TrakMotive HY-3521 is part of the CV Intermediate Shaft line and is specified for front replacement on the Hyundai Santa Fe Sport. The shaft uses a 28-spline inboard and 28-spline outboard configuration, with a conventional outboard joint type and a compressed length of 16.56 inches. For shoppers searching for a Hyundai Santa Fe Sport front CV intermediate shaft or TrakMotive HY-3521 replacement, this part matches the listed application for 2013-2016 models.
This part cross-references TrakMotive HY-3521 for the same application.
What It Helps Address
- Front driveline vibration from a worn intermediate shaft
- Noise caused by spline wear or shaft imbalance
- Loss of smooth power transfer in the front driveline
- Replacement needs after shaft damage or corrosion
- Service issues on 2013-2016 Hyundai Santa Fe Sport front driveline assemblies
Installation Notes
Verify spline count, compressed length, and front position before installation. Inspect related CV components, seals, and mounting points for wear before reassembly. Because the axle nut is not included, confirm whether your service procedure requires reuse or separate sourcing of that component.
Quality Assurance
TrakMotive identifies HY-3521 as a premium-grade CV intermediate shaft for direct-fit replacement service. Confirm vehicle fitment by year, make, model, and front position before ordering.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Hyundai | Santa Fe Sport | FWD | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2015 | Hyundai | Santa Fe Sport | FWD | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2014 | Hyundai | Santa Fe Sport | FWD | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2013 | Hyundai | Santa Fe Sport | FWD | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
