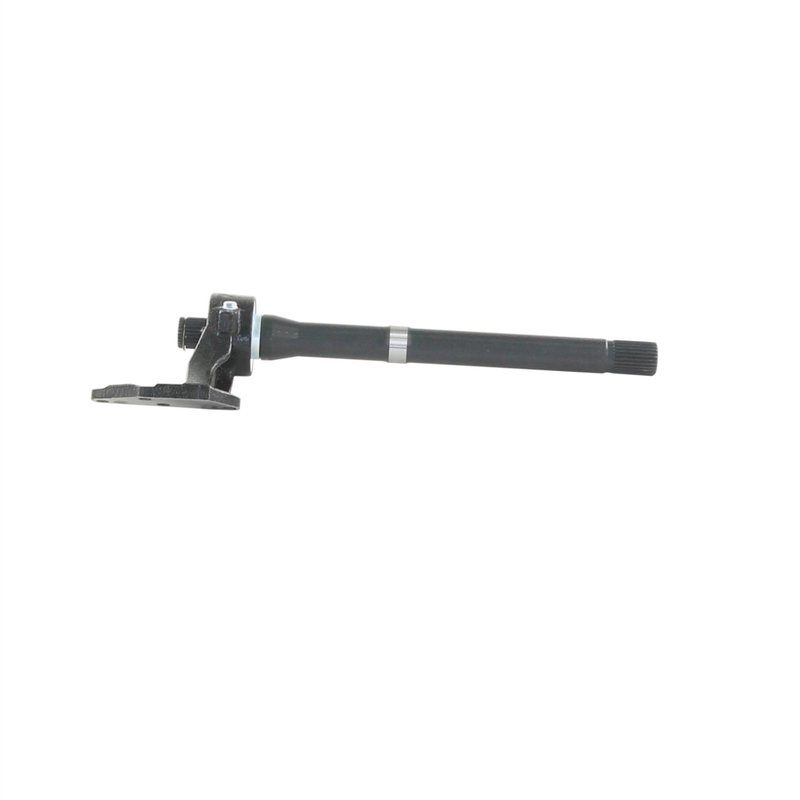

TrakMotive HY-3522 CV Intermediate Shaft - Front
OE Quality 60-Day Returns
TrakMotive
 CV Intermediate Shaft

TrakMotive HY-3522 CV Intermediate Shaft - Front

Brand TrakMotive HY-3522
Position Front
Axle Nut Included No
Grade Type Premium
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 28
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 28
Overall Compressed Length (in) 16.56
Overall Compressed Length (mm) 420
Product line CV Intermediate Shaft
Fits Hyundai · 4 vehicles

Premium grade. Built for dependable driveline performance.

CV intermediate shaft. A direct-fit driveline component for smooth power transfer.

28-spline design. Precision spline count for secure engagement.

Cross-references TrakMotive HY-3522 and NEX37006 for the same application. See all 2.

$84.88Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $84.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Intermediate Shaft options

CV Intermediate Shaft for Hyundai Santa Fe Sport

TrakMotive HY-3522 is a premium CV intermediate shaft for front applications on the 2013-2016 Hyundai Santa Fe Sport. It is built for direct driveline service where the intermediate shaft must transfer power smoothly while maintaining proper spline engagement.

Key Features

  • Premium-grade CV intermediate shaft
  • Front position application
  • 28 splines on the inboard side
  • 28 splines on the outboard side
  • Overall compressed length: 16.56 in. (420 mm)
  • Axle nut not included

Product Details

TrakMotive HY-3522 is a CV intermediate shaft for the front driveline on the Hyundai Santa Fe Sport. This part is specified for 2013-2016 Hyundai Santa Fe Sport, front, standard duty replacement use. The shaft uses 28 inboard splines and 28 outboard splines, with an overall compressed length of 16.56 inches (420 mm), helping match the original driveline geometry for the listed application. This part cross-references NEX37006 for the same application.

Common Repair Uses

  • Restores driveline connection when the original intermediate shaft is worn
  • Addresses vibration caused by spline wear or driveline looseness
  • Replaces a shaft with damaged or stripped splines
  • Corrects front driveline noise related to intermediate shaft wear
  • Supports repair after CV component failure in the front axle assembly

Installation Notes

Verify spline count, compressed length, and front position before installation. Confirm fitment for 2013-2016 Hyundai Santa Fe Sport, front, and compare the removed shaft to HY-3522 before assembly. Because the axle nut is not included, reuse or source the correct hardware separately if required by the vehicle service procedure.

Quality Assurance

TrakMotive identifies this as a premium-grade CV intermediate shaft. Use the listed dimensions and fitment data to confirm the correct replacement for the Hyundai Santa Fe Sport application before installation.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2016HyundaiSanta Fe SportAWD2.0LL4FrontStandard Duty Replacement; CV Intermediate Shaft
2015HyundaiSanta Fe SportAWD2.0LL4FrontStandard Duty Replacement; CV Intermediate Shaft
2014HyundaiSanta Fe SportAWD2.0LL4FrontStandard Duty Replacement; CV Intermediate Shaft
2013HyundaiSanta Fe SportAWD2.0LL4FrontStandard Duty Replacement; CV Intermediate Shaft
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — HY-3522NEX37006
