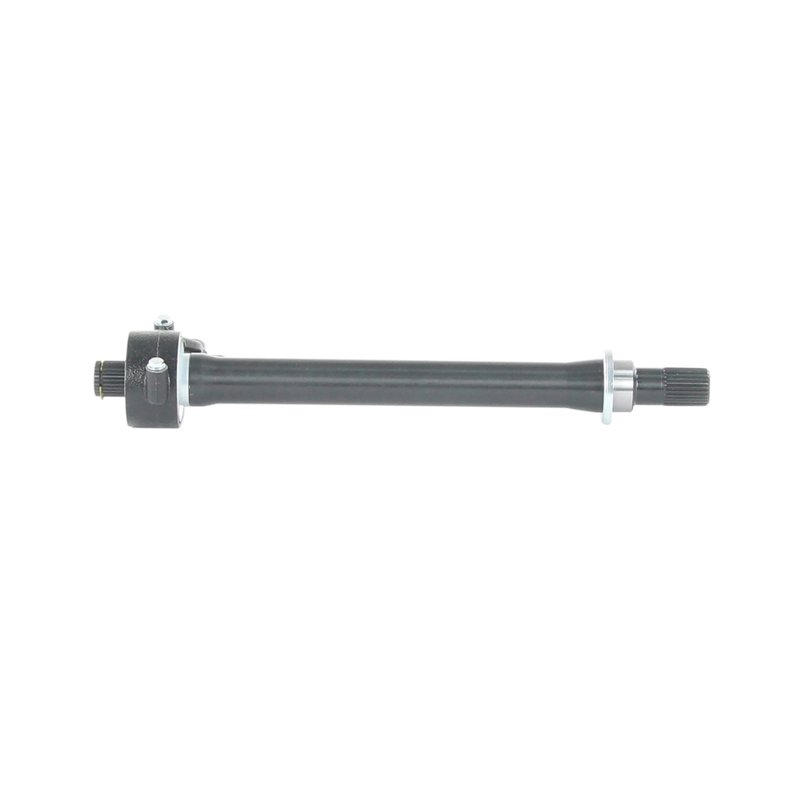

TrakMotive HY-3526 CV Intermediate Shaft - Front or Front Left
CV Intermediate Shaft for Hyundai Sonata
TrakMotive HY-3526 is a premium CV intermediate shaft for select Hyundai Sonata applications. It is built for front driveline service on US-market vehicles and is specified with 28 inboard splines and 28 outboard splines for the listed fitments.
This CV intermediate shaft is part of TrakMotive’s CV Intermediate Shaft line, focused on replacement driveline components for vehicles that need precise fitment and consistent axle support. HY-3526 is engineered for the front left position on 2018-2019 Hyundai Sonata and the front position on 2015-2017 Hyundai Sonata.
Key Features
- Premium-grade CV intermediate shaft
- 28 inboard splines and 28 outboard splines
- Overall compressed length: 18.5 in. (470 mm)
- Front left fitment for 2018-2019 Hyundai Sonata
- Front fitment for 2015-2017 Hyundai Sonata
- No axle nut included
- TrakMotive HY-3526 replacement part number
Detailed Description
TrakMotive HY-3526 is a CV intermediate shaft for Hyundai Sonata driveline repair where the intermediate shaft must match the original spline count and compressed length. The 18.5-inch overall compressed length and 28-spline configuration on both ends support the listed front driveline applications, including 2015-2017 Hyundai Sonata front and 2018-2019 Hyundai Sonata front left. If you are searching for a Hyundai Sonata CV intermediate shaft, HY-3526 provides a direct replacement reference for the specified US-market vehicles.
TrakMotive manufactures this part under ISO 9001:2008 and TS 16949:2009 certified quality systems, which supports consistent production control for driveline replacement parts. HY-3526 is the part number to reference when ordering or verifying application details for the listed Sonata fitments.
What It Helps Address
- Worn or damaged intermediate shaft splines
- Vibration or driveline noise from a failing shaft assembly
- Axle support issues in front-drive Hyundai Sonata applications
- Fitment problems caused by incorrect shaft length or spline count
- Replacement needs for front left or front intermediate shaft service
Installation Notes and Tips
Verify the vehicle year, model, and position before installation. Confirm the 28-spline configuration and 18.5-inch compressed length against the original part, especially on 2015-2017 Hyundai Sonata front and 2018-2019 Hyundai Sonata front left applications. No axle nut is included, so reuse or source any required related components separately based on the vehicle service procedure.
Quality Assurance
TrakMotive HY-3526 is backed by a limited lifetime warranty and produced by a company certified to ISO 9001:2008 and TS 16949:2009 standards.
| Brand | TrakMotive |
|---|---|
| Part Number | HY-3526 |
| Position | CV Intermediate Shaft, Front and Front Left |
| Axle Nut Included | No |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Overall Compressed Length (in) | 18.5 |
| Overall Compressed Length (mm) | 470 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Hyundai | Sonata | 1.6L | L4 | Front Left | US Market; CV Intermediate Shaft |
| 2018 | Hyundai | Sonata | 1.6L | L4 | Front Left | US Market; CV Intermediate Shaft |
| 2017 | Hyundai | Sonata | 1.6L | L4 | Front | US Market; CV Intermediate Shaft |
| 2016 | Hyundai | Sonata | 1.6L | L4 | Front | US Market; CV Intermediate Shaft |
| 2015 | Hyundai | Sonata | 1.6L | L4 | Front | US Market; CV Intermediate Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
