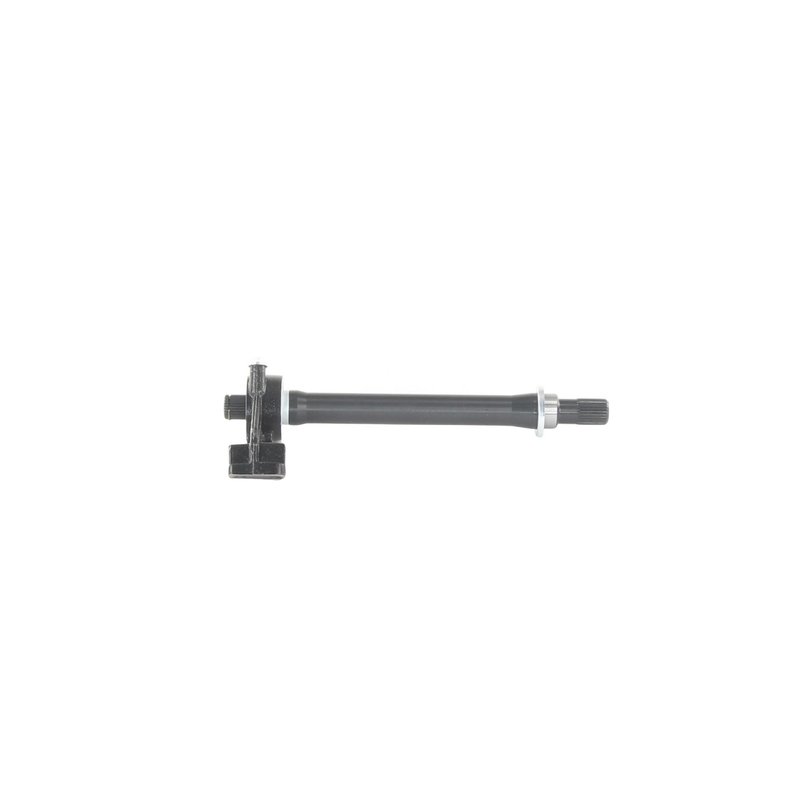

TrakMotive HY-3534 CV Intermediate Shaft - Front
| Brand | TrakMotive HY-3534 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Axle Nut Included | No |
| Inboard Bolt Head Size (in) | 1/2 |
| Inboard Bolt Head Size (mm) | 12 |
| Inboard Bolt Length (in) | 7/8 |
| Inboard Bolt Length (mm) | 21.5 |
| Inboard Bolt Thread Size | M8*1 |
| Number Of Inboard Shaft Bolts | 2 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 28 |
| Overall Compressed Length (in) | 17 1/8 |
| Overall Compressed Length (mm) | 435 |
| Product line | CV Intermediate Shaft |
| Fits | Hyundai and Kia · 5 vehicles |
CV intermediate shaft. Direct replacement for a worn driveline component.
ISO certified manufacturing. Built under ISO 9001:2008 and TS 16949:2009 standards.
Spline-matched design. 28 inboard and 28 outboard splines for precise engagement.
Cross-references TrakMotive HY-3534 for the same application. See all 1.
Front CV Intermediate Shaft for Hyundai and Kia
TrakMotive HY-3534 is a front CV intermediate shaft for select Hyundai Santa Fe and Kia Sorento applications. It is built as a standard-duty replacement for driveline service where the original intermediate shaft has worn splines, damaged support points, or vibration-related issues.
This CV intermediate shaft is part of TrakMotive’s CV Intermediate Shaft line, focused on direct-fit driveline replacement components for import vehicles. HY-3534 is specified for 2010-2012 Hyundai Santa Fe, front, and 2011-2012 Kia Sorento, front.
- Front CV intermediate shaft for select Hyundai Santa Fe and Kia Sorento models
- Overall compressed length: 17 1/8 in. (435 mm)
- 28 inboard splines and 28 outboard splines
- Inboard bolt thread size: M8x1
- Two inboard shaft bolts with 1/2 in. (12 mm) head size and 7/8 in. (21.5 mm) length
- No ABS tone ring included
- No axle nut included
HY-3534 is engineered for driveline service on the front axle of 2010-2012 Hyundai Santa Fe and 2011-2012 Kia Sorento vehicles. The shaft dimensions, spline count, and bolt specifications are important for matching the original intermediate shaft layout and restoring proper connection between the transmission side and the outer driveline assembly. This part number, HY-3534, is a direct reference for shoppers searching for a front Hyundai Santa Fe CV intermediate shaft or a Kia Sorento intermediate shaft replacement.
What This Part Helps Address
- Worn or damaged intermediate shaft splines
- Front-end vibration related to driveline wear
- Noise from a failing CV intermediate shaft assembly
- Loss of smooth power transfer through the front driveline
- Replacement needs after inspection of the original shaft assembly
Installation Notes and Tips
Verify spline count, compressed length, and inboard bolt specifications before installation. Confirm front-position application on the vehicle and inspect related CV components, seals, and mounting points for wear before reassembly. HY-3534 does not include an ABS tone ring or axle nut, so those items should be confirmed separately during service planning.
Quality Assurance
TrakMotive backs this CV intermediate shaft with a limited lifetime warranty. The manufacturer states that its production is supported by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Hyundai | Santa Fe | Manual | 2.4L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2012 | Kia | Sorento | Manual | 2.4L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Hyundai | Santa Fe | Manual | 2.4L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Kia | Sorento | Manual | 2.4L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2010 | Hyundai | Santa Fe | Manual | 2.4L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
