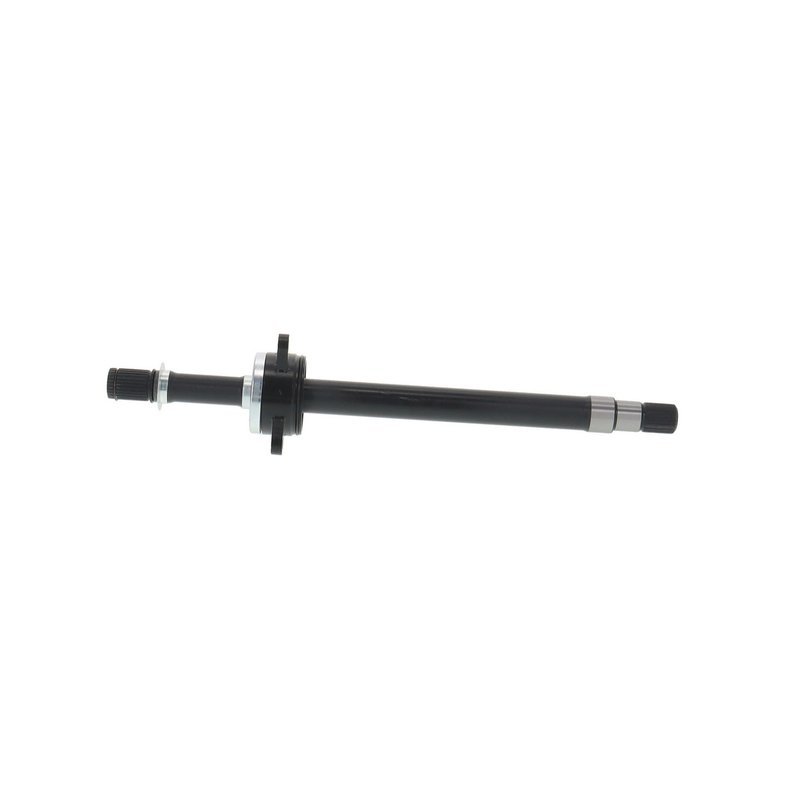

TrakMotive HY-3539 CV Intermediate Shaft - Front
| Brand | TrakMotive HY-3539 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Axle Nut Included | No |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Overall Compressed Length (in) | 20.38 |
| Overall Compressed Length (mm) | 518 |
| Product line | CV Intermediate Shaft |
| Fits | Genesis and Kia · 7 vehicles |
CV intermediate shaft. A driveline component for smooth power transfer.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 company.
Cross-references TrakMotive HY-3539 for the same application. See all 1.
CV Intermediate Shaft for Genesis and Kia
TrakMotive HY-3539 is a front CV intermediate shaft for select Genesis and Kia applications. It is built as a standard duty replacement for the original driveline component and is specified with 27 inboard splines, 28 outboard splines, and an overall compressed length of 20.38 in. The HY-3539 is a direct-fit driveline service part for front-wheel-side axle support on the listed vehicles.
Key Features
- Front CV intermediate shaft for driveline repair
- 27 inboard splines and 28 outboard splines
- Overall compressed length: 20.38 in. (518 mm)
- No ABS tone ring included
- No axle nut included
- Standard duty replacement for OE-style service
- TrakMotive HY-3539 part number for catalog matching
Product Details
TrakMotive positions the CV Intermediate Shaft line as a service solution for driveline and axle applications, and HY-3539 follows that approach with application-specific dimensions and spline counts. This part cross-references TrakMotive HY-3539 for the same application. Use HY-3539 when servicing the front driveline on 2019-2021 Genesis G70, 2018-2020 Kia Stinger, and 2017 Genesis G90. The fitment profile and compressed length help ensure the shaft matches the original layout for these vehicles.
Common Problems This Part Can Address
- Front driveline vibration caused by a worn intermediate shaft
- Noise from damaged or excessive-play CV shaft components
- Loss of smooth power transfer through the front axle assembly
- Service replacement for a shaft with incorrect spline count or length
- Repair of driveline wear on Genesis G70, Kia Stinger, or Genesis G90 front applications
Installation Notes and Tips
Verify spline counts, compressed length, and front position before installation. Confirm that the vehicle does not require an ABS tone ring or axle nut from this part, since neither is included. Match the shaft to the exact application listed for 2019-2021 Genesis G70, 2018-2020 Kia Stinger, and 2017 Genesis G90 to avoid fitment issues. HY-3539 should be installed as a direct replacement for the original front CV intermediate shaft on the confirmed vehicle applications.
Quality Assurance
TrakMotive states that this product line is backed by a limited lifetime warranty and manufactured by an ISO 9001:2008 and TS 16949:2009 certified company. Those certifications reflect controlled production and quality management practices for driveline components such as the HY-3539.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Genesis | G70 | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Genesis | G70 | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Kia | Stinger | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Genesis | G70 | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Kia | Stinger | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Kia | Stinger | 2.0L | L4 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2017 | Genesis | G90 | 5.0L | V8 | Front | Standard Duty Replacement; CV Intermediate Shaft |
