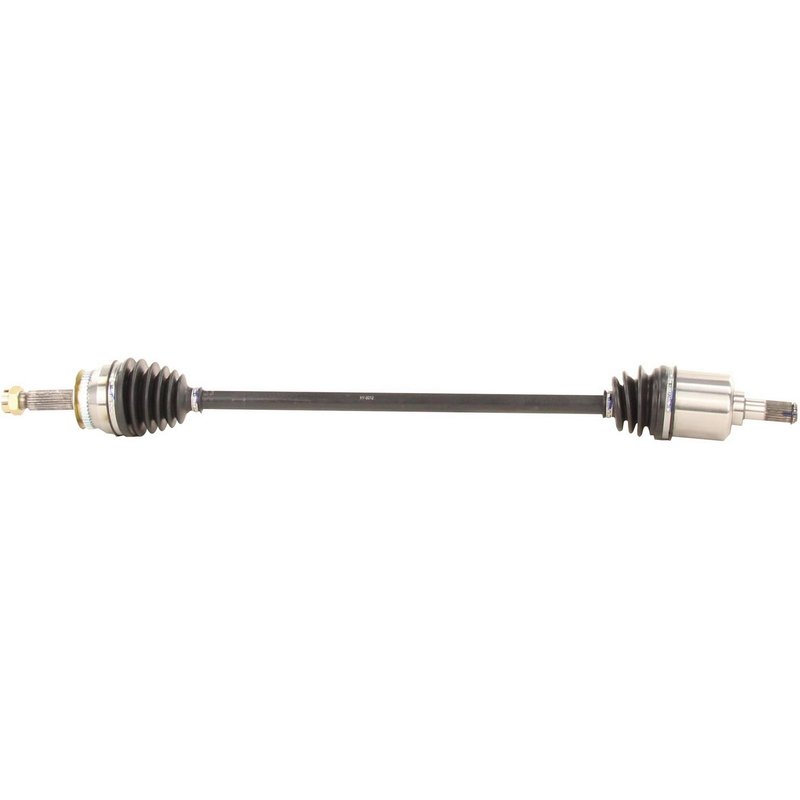

TrakMotive HY-8012 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8012 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.75 |
| Overall Compressed Length (mm) | 933.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 17 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Built with a toothed ring and 44 teeth for accurate wheel-speed sensing.
Axle nut included. Comes with a hex nut and cotter pin locking style for secure installation.
Cross-references AMS Automotive 6656, Cardone New 66-3469 and Cardone Reman 60-3345 for the same application. See all 30.
CV Axle Shaft for Hyundai and Kia Front Right Applications
TrakMotive HY-8012 is a new CV axle shaft built for front right applications on select Hyundai and Kia vehicles. It combines a 25-spline inboard joint, 25-spline outboard connection, and ABS tone ring details to match the listed driveline setup.
Use this axle shaft for a direct replacement on 2001-2006 Hyundai Elantra, 2003-2008 Hyundai Tiburon, 2004-2006 Kia Spectra, and 2005-2006 Kia Spectra5 front right positions. The HY-8012 part number is also a useful reference when comparing OE-style driveline replacements for these applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8012
- Front right axle shaft for listed Hyundai and Kia applications
- 25-spline inboard joint and 25-spline outboard connection
- ABS tone ring included with 44-tooth toothed ring
- Neoprene boot material
- Axle nut included with M22 x 1.5 thread, 32 mm hex, and cotter pin locking type
- New, not remanufactured
- Overall compressed length: 36.75 in. (933.5 mm)
Product Details
TrakMotive HY-8012 is a CV axle shaft for front right driveline service on select Hyundai Elantra, Hyundai Tiburon, Kia Spectra, and Kia Spectra5 models. It features a male inboard shaft connection, conventional outboard joint design, and an ABS tone ring with 44 teeth for applications that require wheel speed signal integration. TrakMotive positions this axle shaft as a new replacement part built under ISO 9001:1007 and TS 16949:2009 certified manufacturing controls.
This part cross-references Cardone New 66-3469 and AMS Automotive 6656 for the same application. The HY-8012 part number is also listed among interchange references for OE-style replacement searches.
What It Helps Address
- Clicking or popping from a worn front right CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a deteriorated neoprene boot
- ABS-related drivability concerns when the tone ring is part of the original setup
- Excessive play or noise from a worn driveline assembly
Installation Notes and Tips
Confirm the vehicle’s front right application, spline count, axle nut thread size, and ABS configuration before ordering. This axle uses a 25-spline inboard joint and a 25-spline outboard connection, so matching the original driveline specification is important for proper fitment. Verify compressed length and axle nut dimensions against the removed part during installation.
Fits 2001-2006 Hyundai Elantra, front right. Fits 2003-2008 Hyundai Tiburon, front right. Fits 2004-2006 Kia Spectra, front right. Fits 2005-2006 Kia Spectra5, front right.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new part and backs it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certified production standards, supporting consistent manufacturing control for driveline replacement parts.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2007 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Hyundai | Elantra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Kia | Spectra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Kia | Spectra5 | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Hyundai | Elantra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Kia | Spectra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Kia | Spectra5 | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2004 | Hyundai | Elantra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2004 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2004 | Kia | Spectra | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2003 | Hyundai | Elantra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2003 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2002 | Hyundai | Elantra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2001 | Hyundai | Elantra | Automatic | — | — | Front Right | w/ 25 Spline Inboard Joint; CV Axle Shaft |
