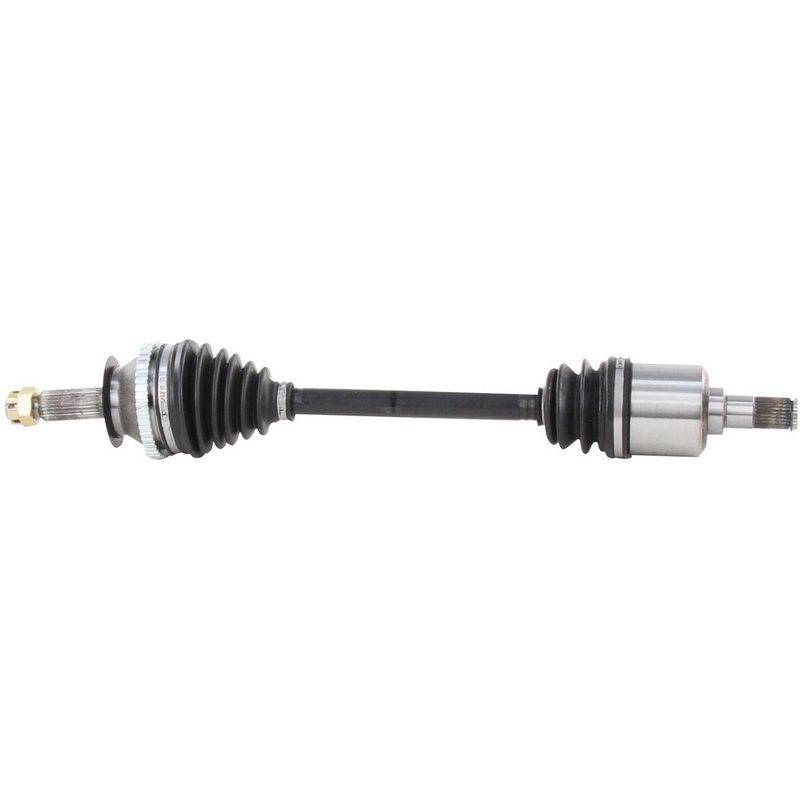

TrakMotive HY-8019 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8019

The TrakMotive CV Axle Shaft HY-8019 is engineered for reliable driveline performance in select Hyundai and Kia vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models like the Hyundai Sonata, Kia Optima, and Hyundai Magentis.

• Compatible with Hyundai Magentis, Sonata and Kia Optima
• Includes ABS tone ring with 47 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.98 inches (660 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that maintain vehicle stability and power transfer. This CV axle shaft line is designed to provide a direct replacement for factory parts, featuring quality materials such as neoprene boots and ABS tone rings to ensure compatibility with vehicle anti-lock braking systems. The HY-8019 part number represents a new axle shaft built to exacting standards for Hyundai and Kia applications.

Technical Specifications and Features

This CV axle shaft features a 47-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22 x 1.5 thread size and includes a cotter pin locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. Both the inboard and outboard shafts have 27 splines, with the inboard joint being male type and the outboard joint conventional style. The overall compressed length of the axle shaft is 25.98 inches (660 mm), ensuring proper fitment in the specified vehicles.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Sonata, Kia Optima, and Hyundai Magentis
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included hex axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8019, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor to maintain ABS functionality. Inspect the neoprene boots for any damage during installation to avoid premature failure. This part is designed for direct replacement, so no modifications should be necessary for compatible Hyundai and Kia models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8019 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut with locking cotter pin. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment for Hyundai Sonata, Kia Optima, and Hyundai Magentis vehicles.
