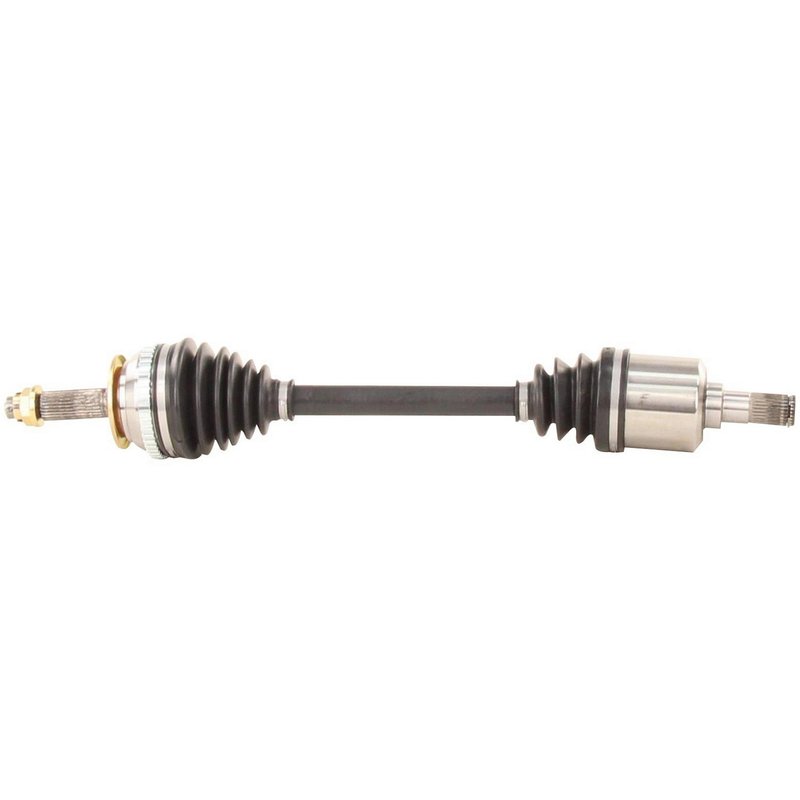

TrakMotive HY-8024 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8024

The TrakMotive CV Axle Shaft HY-8024 is engineered for reliable driveline performance in Hyundai and Kia vehicles. Designed specifically for models like the Hyundai Sonata, Kia Optima, and Hyundai Magentis, this CV axle shaft ensures precise fitment and durability.

• Compatible with Hyundai Sonata, Kia Optima, and Hyundai Magentis
• Includes ABS tone ring with 47 toothed ring teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Comes with a hex head axle nut featuring a cotter pin locking mechanism
• Overall compressed length of 26.06 inches (662 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet or exceed OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance in specific vehicle applications. The HY-8024 model is part of this line, offering a male inboard joint and conventional outboard joint to match factory driveline configurations.

Technical Specifications and Features

The HY-8024 CV axle shaft features a 47-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The axle nut is a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 21 mm (5/6 inch) and a length of 34.6 mm (1 1/3 inch). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. Both inboard and outboard splines number 27, with the inboard joint designed as male and the outboard joint conventional, ensuring proper connection and torque transfer.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Sonata, Kia Optima, and Hyundai Magentis
• Resolves issues related to torn or leaking CV boots that cause grease loss and joint wear
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included ABS tone ring
• Fixes axle nut thread or locking failures to maintain wheel security

Installation Notes and Tips

Ensure compatibility by verifying vehicle make, model, and year before installation. The included axle nut with cotter pin locking requires proper torque specifications and pin installation to secure the axle shaft. Inspect the axle splines and joint connections for damage before assembly. Use appropriate tools to avoid damaging the neoprene boot during installation. It is recommended to replace axle nuts and cotter pins with new components to maintain safety standards.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8024 is a new, not remanufactured, component built to meet OEM standards. It includes an ABS tone ring for sensor compatibility and is constructed with durable materials such as neoprene boots and high-grade steel. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliable performance in Hyundai and Kia driveline applications.
