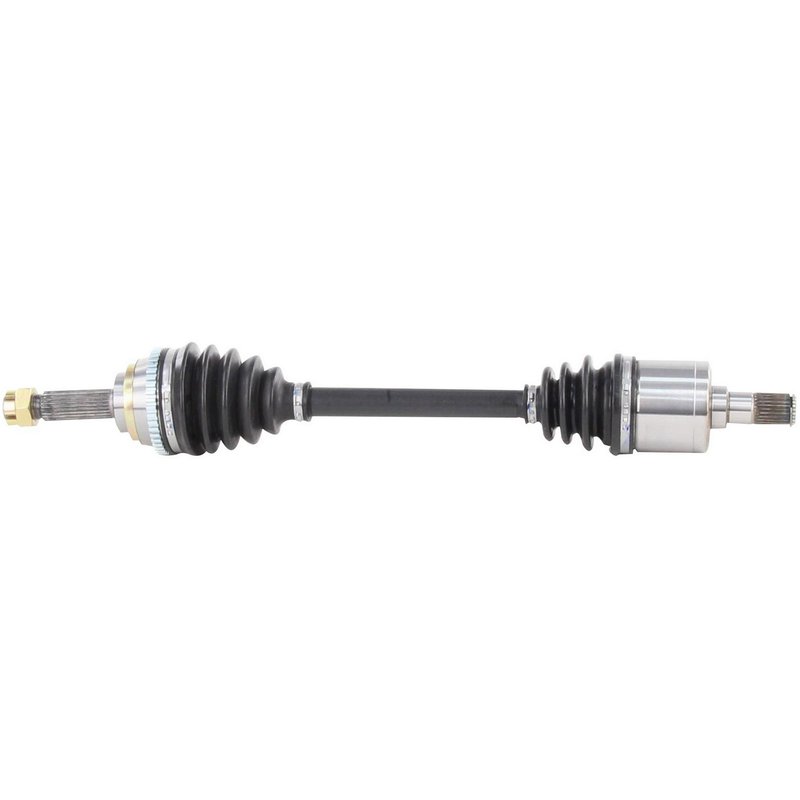

TrakMotive HY-8052 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8052

The TrakMotive CV Axle Shaft HY-8052 is engineered for reliable driveline performance in Dodge and Hyundai vehicles, specifically compatible with the Accent and Verna models. This new CV axle shaft is designed to maintain smooth power transfer and vehicle stability under various driving conditions.

• Compatible with Dodge Accent and Hyundai Verna
• Includes a toothed ABS tone ring with 44 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Axle nut features a hex head design with cotter pin locking for secure installation
• Overall compressed length of 24.57 inches (624 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components designed to meet OEM specifications. This line emphasizes durability and fitment accuracy, ensuring that each axle shaft, including the HY-8052, provides consistent performance and longevity. The inclusion of features such as ABS tone rings and neoprene boots reflects the line’s attention to both safety and protection against environmental factors.

Technical Specifications and Features

The HY-8052 CV axle shaft includes a 44-tooth ABS ring with a toothed design, which is essential for precise ABS sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. Both inboard and outboard joints feature 25 splines, with the inboard joint being male type and the outboard joint conventional, ensuring compatibility with the specified vehicle models.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Dodge Accent and Hyundai Verna
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8052, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. This axle shaft’s overall compressed length of 24.57 inches (624 mm) should match the vehicle’s requirements for proper fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8052 is a new component manufactured to meet or exceed OEM standards. It includes an ABS tone ring and comes with the necessary axle nut for secure installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and durability in driveline applications.
