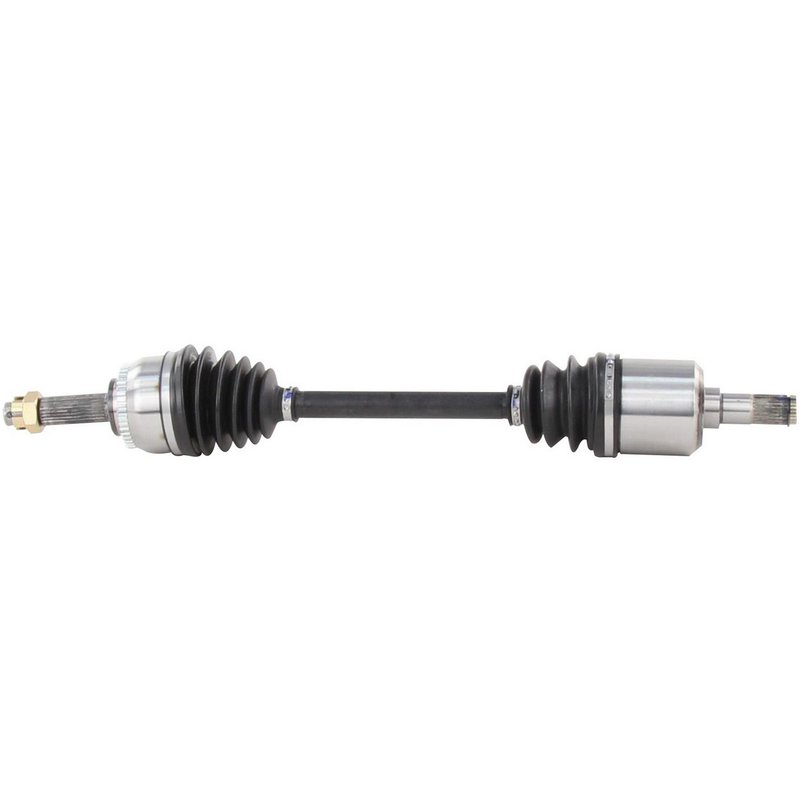

TrakMotive HY-8065 CV Axle Shaft - Front Left

TrakMotive CV Axle Shaft for Hyundai Elantra and Tiburon

The TrakMotive CV Axle Shaft HY-8065 is engineered to provide reliable driveline performance for Hyundai Elantra and Tiburon models. Designed as a new replacement part, it ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Elantra and Tiburon
• Includes ABS tone ring with 44 toothed ring count
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.28 inches (642 mm)
• Male inboard joint and conventional outboard joint types
• 25 splines on both inboard and outboard shafts

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components tailored for specific vehicle applications. This product line emphasizes quality materials and accurate specifications, such as ABS tone rings and secure axle nut designs, to maintain vehicle safety and performance. The HY-8065 model exemplifies these standards with its detailed engineering for Hyundai vehicles.

Detailed Product Description and Specifications

The HY-8065 CV Axle Shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the constant velocity joints from contaminants. The axle nut included is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses a cotter pin locking mechanism to ensure secure installation. The ABS tone ring is toothed with 44 teeth, compatible with the vehicle's anti-lock braking system. Both the inboard and outboard joints have 25 splines, with the inboard joint designed as male and the outboard joint as conventional, ensuring proper connection and torque transfer. The overall compressed length of 25.28 inches (642 mm) matches OEM specifications for Hyundai Elantra and Tiburon models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Elantra and Tiburon
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leaks with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before removing the old CV axle shaft. Verify the spline count and joint types match the HY-8065 specifications. Use the included hex axle nut with cotter pin to secure the axle properly, tightening to manufacturer torque specifications. Inspect the ABS tone ring alignment during installation to maintain sensor accuracy. It is recommended to replace axle nuts and cotter pins with new components to ensure safety.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8065 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment for Hyundai Elantra and Tiburon models.
