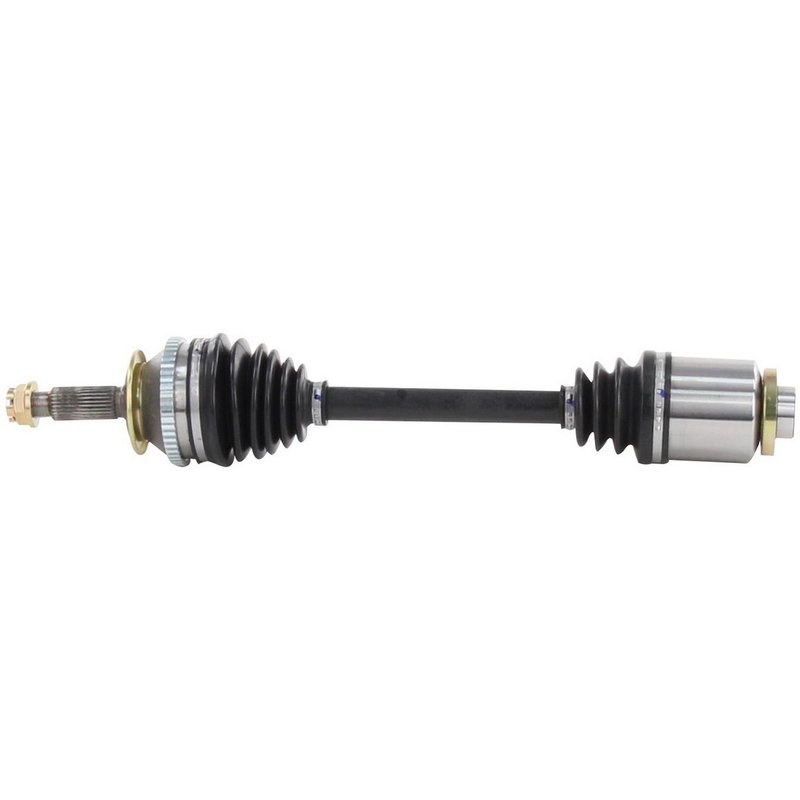

TrakMotive HY-8072 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8072 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8072 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Santa Fe vehicles
• Includes ABS tone ring with 52 toothed ring count
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 23.78 inches (604 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and reliable driveline components. This CV axle shaft model HY-8072 features a female inboard joint and a conventional outboard joint, designed to meet the exact specifications required for Hyundai Santa Fe vehicles. The inclusion of a toothed ABS ring and neoprene boot material highlights the line's attention to durability and compatibility with modern vehicle safety systems.

Technical Specifications and Features

This CV axle shaft includes a 52-tooth ABS ring type, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 30 mm across flats, with a height of 21 mm and a length of 34.6 mm, secured by a cotter pin locking system to prevent loosening during operation. The neoprene boot protects the joint from contaminants and wear, extending the service life of the axle. The inboard joint uses a female connection style with 26-2t splines, while the outboard joint is conventional with 27 splines, ensuring a secure and precise fit.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included hex axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8072, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to maintain safety. Verify the ABS tone ring is properly aligned with the wheel speed sensor to avoid error codes. The neoprene boot should be inspected for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Hyundai Santa Fe models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8072 is a new, OEM-quality replacement part manufactured to meet or exceed industry standards. It includes the axle nut and ABS tone ring to ensure complete assembly compatibility. While specific warranty details are not provided, TrakMotive products typically adhere to strict quality control measures to ensure durability and performance in driveline applications.
