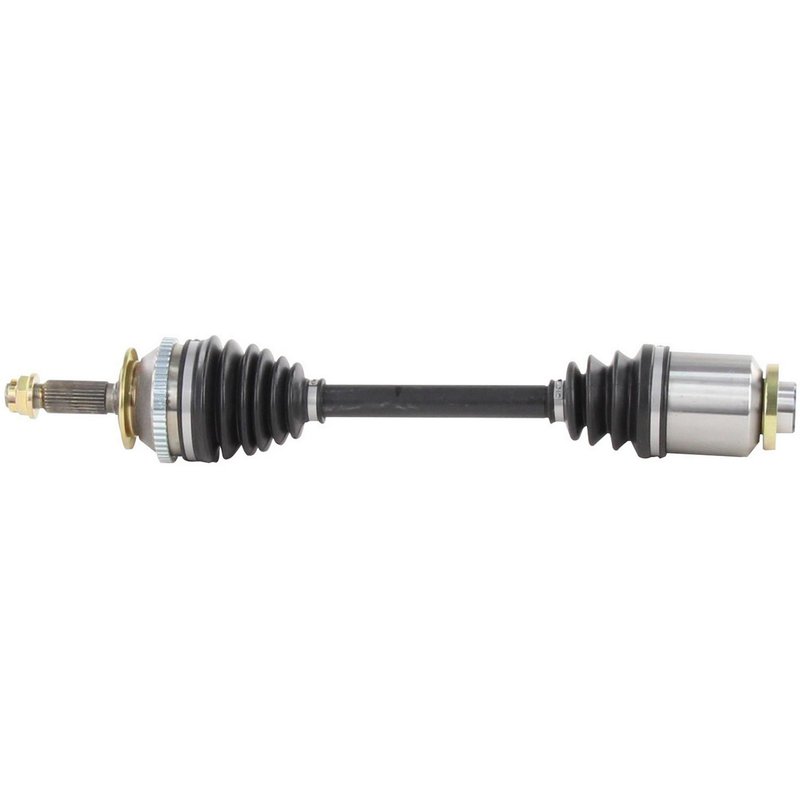

TrakMotive HY-8073 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8073 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26-2T |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.02 |
| Overall Compressed Length (mm) | 610 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New shaft assembly. Fresh replacement for driveline and CV component service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring is built in for compatible ABS applications.
Cross-references BBB Industries 6642, Cardone New 66-3370 and Cardone Reman 60-3370 for the same application. See all 27.
CV Axle Shaft for Hyundai Santa Fe
TrakMotive HY-8073 is a new CV axle shaft for the front right position on 2001-2006 Hyundai Santa Fe models. It is built for direct replacement service and includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2001-2006 Hyundai Santa Fe, front right
- TrakMotive CV Axle Shaft, part number HY-8073
- New axle assembly with 24.02 in. overall compressed length
- 52-tooth toothed ABS ring with tone ring included
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and cotter pin locking type
- Female inboard shaft connection with conventional outboard shaft connection
- 26-2T inboard splines and 27 outboard splines
Product Details
TrakMotive HY-8073 is a CV axle shaft for the Hyundai Santa Fe front right driveline position. This axle is specified as a new unit with a female inboard joint, conventional outboard joint, and a compressed length of 610 mm (24.02 in.), helping match the original driveline geometry for the listed vehicle application. The ABS setup uses a toothed ring with 52 teeth, and the tone ring is included for vehicles that require ABS signal transfer. TrakMotive HY-8073 also cross-references BBB Industries 6642 for the same application.
What This Axle Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or out-of-balance axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a worn tone ring or sensor signal issue
- Driveline noise from spline or joint wear at the front right corner
Installation Notes
Verify the front right position, spline count, axle nut thread size, and ABS ring configuration before installation. Confirm the vehicle uses the listed 2001-2006 Hyundai Santa Fe fitment and compare the original axle length and joint style to the replacement part. Proper torque procedures and final inspection of the axle nut and cotter pin retention are important for a secure installation.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices for driveline components.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | 4WD | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2005 | Hyundai | Santa Fe | 4WD | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2004 | Hyundai | Santa Fe | 4WD | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2003 | Hyundai | Santa Fe | 4WD | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2002 | Hyundai | Santa Fe | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 2001 | Hyundai | Santa Fe | 4WD | — | — | — | Front Right | CV Axle Shaft |
