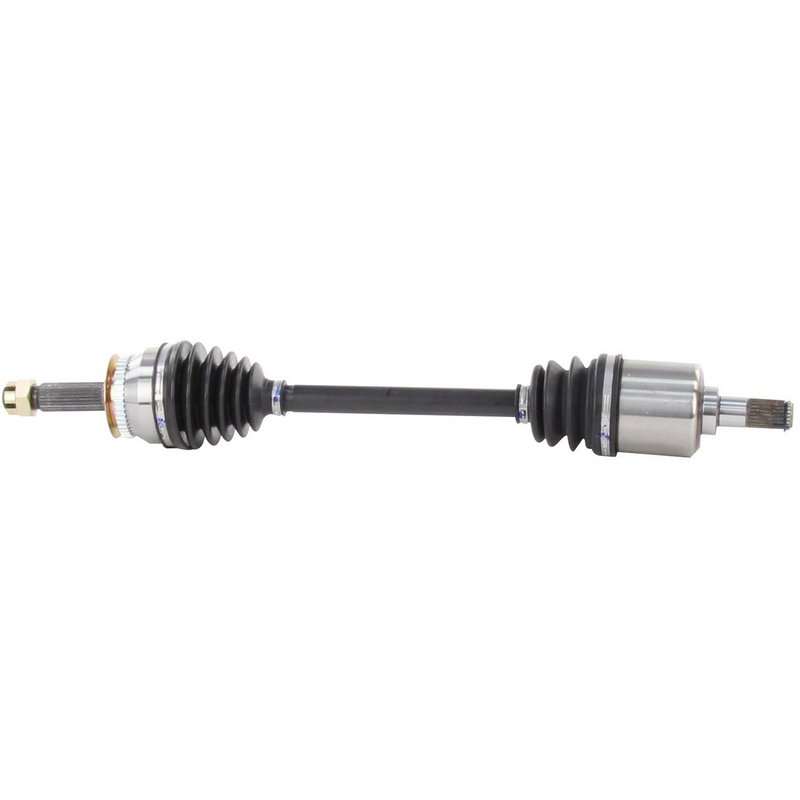

TrakMotive HY-8077 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8077 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.57 |
| Overall Compressed Length (mm) | 649.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 17 vehicles |
New axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
ABS tone ring included. Built with a toothed ring and 44 teeth for ABS-equipped applications.
Cross-references AMS Automotive 6653, Atlantic Automotive Engineering 3104N and Cardone New 66-3467 for the same application. See all 49.
CV Axle Shaft for Hyundai and Kia Front Left
TrakMotive HY-8077 is a new CV axle shaft built for front left applications on select Hyundai and Kia vehicles. It is engineered with a 25-spline inboard joint, 25-spline outboard connection, and a 44-tooth toothed ABS tone ring for accurate wheel speed signal transfer where equipped.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8077
- Fits front left applications on select 2001-2008 Hyundai Elantra, Hyundai Tiburon, Kia Spectra, and Kia Spectra5 models
- New axle shaft with male inboard shaft connection and conventional outboard joint type
- 25 inboard splines and 25 outboard splines
- 44-tooth toothed ABS ring included
- Neoprene boot material
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- Overall compressed length: 649.5 mm (25.57 in)
Product Details
TrakMotive HY-8077 is a CV axle shaft for front left driveline service on 2001-2006 Hyundai Elantra, 2003-2008 Hyundai Tiburon, 2004-2006 Kia Spectra, and 2005-2006 Kia Spectra5. This axle uses a male inboard shaft connection, a conventional outboard joint, and a neoprene boot to support consistent driveline operation in the specified applications. The included ABS tone ring and axle nut help match the original configuration for vehicles that use a toothed wheel speed signal setup. This part cross-references Cardone New 66-3467 and AMS Automotive 6653 for the same application.
Common Repair Uses
- Restores driveline function after a worn or noisy front axle shaft
- Addresses clicking or popping during turns caused by CV joint wear
- Replaces a damaged boot, joint, or shaft assembly
- Helps correct vibration or shudder from a failing axle
- Supports ABS signal transfer when the original axle uses a toothed tone ring
Installation Notes
Verify spline count, axle length, and ABS ring configuration before installation. Confirm the front left position and match the axle nut thread size, hex size, and locking style to the vehicle specification. For Hyundai Elantra, Hyundai Tiburon, Kia Spectra, and Kia Spectra5 applications, compare the original axle to HY-8077 before assembly to ensure proper fitment.
Quality Assurance
TrakMotive manufactures this axle as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. HY-8077 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2007 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Hyundai | Elantra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Kia | Spectra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Kia | Spectra5 | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Hyundai | Elantra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Kia | Spectra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2005 | Kia | Spectra5 | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2004 | Hyundai | Elantra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2004 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2004 | Kia | Spectra | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2003 | Hyundai | Elantra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2003 | Hyundai | Tiburon | Automatic | 2.0L | L4 | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2002 | Hyundai | Elantra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
| 2001 | Hyundai | Elantra | Automatic | — | — | Front Left | w/ 25 Spline Inboard Joint; CV Axle Shaft |
