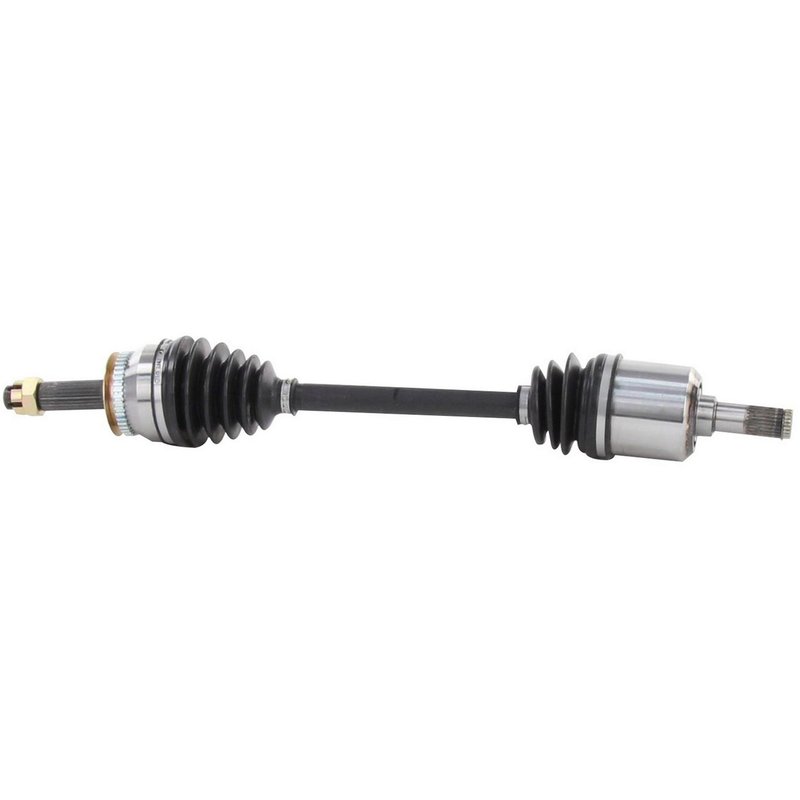

TrakMotive HY-8078 CV Axle Shaft - Front Left

TrakMotive HY-8078 CV Axle Shaft

TrakMotive HY-8078 is a new CV axle shaft for front left applications on select Hyundai models. It is built with a 25-spline inboard and 25-spline outboard configuration, a neoprene boot, and an ABS tone ring with 44 teeth for vehicles equipped with ABS.

This CV axle shaft is listed for 2001-2006 Hyundai Elantra, front left with ABS, and 2003-2005 Hyundai Tiburon, front left with ABS, plus 2006-2008 Hyundai Tiburon, front left. The HY-8078 is a direct driveline replacement for service work where axle noise, vibration, or joint wear has affected front-wheel drive operation.

Key Features

• Brand: TrakMotive CV Axle Shaft
• Part number: HY-8078
• New axle shaft construction
• Front left position
• 25 inboard splines and 25 outboard splines
• Neoprene boot material
• ABS tone ring included with 44-tooth toothed ring
• Male inboard shaft connection style
• Conventional outboard joint type
• Axle nut included with M22 x 1.5 thread, 32 mm hex, and cotter pin locking type

Product Details

TrakMotive HY-8078 is part of the CV Axle Shaft line and is engineered for front left driveline service on Hyundai Elantra and Hyundai Tiburon applications. The axle measures 25.83 inches compressed length and uses a male inboard connection with a conventional outboard shaft connection. For ABS-equipped vehicles, the integrated tone ring supports wheel speed signal operation. TrakMotive identifies this axle as a new unit and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing.

This part cross-references Cardone Reman 60-3343 and 60-3344 for the same application.

What It Helps Address

• Clicking or popping from a worn CV joint
• Vibration during acceleration from a damaged axle shaft
• Boot failure that can lead to grease loss and joint wear
• ABS warning concerns related to a missing or damaged tone ring
• Front left driveline noise on Hyundai Elantra and Hyundai Tiburon models

Installation Notes and Tips

Verify spline count, axle length, and ABS configuration before installation. This axle includes an axle nut with M22 x 1.5 thread and 32 mm hex size; confirm the hub and knuckle hardware match the vehicle specification. For 2001-2006 Hyundai Elantra, front left with ABS, and 2003-2005 Hyundai Tiburon, front left with ABS, confirm the tone ring alignment during installation. For 2006-2008 Hyundai Tiburon, front left, verify the application details against the vehicle build data before service.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certified company manufacturing standards.
