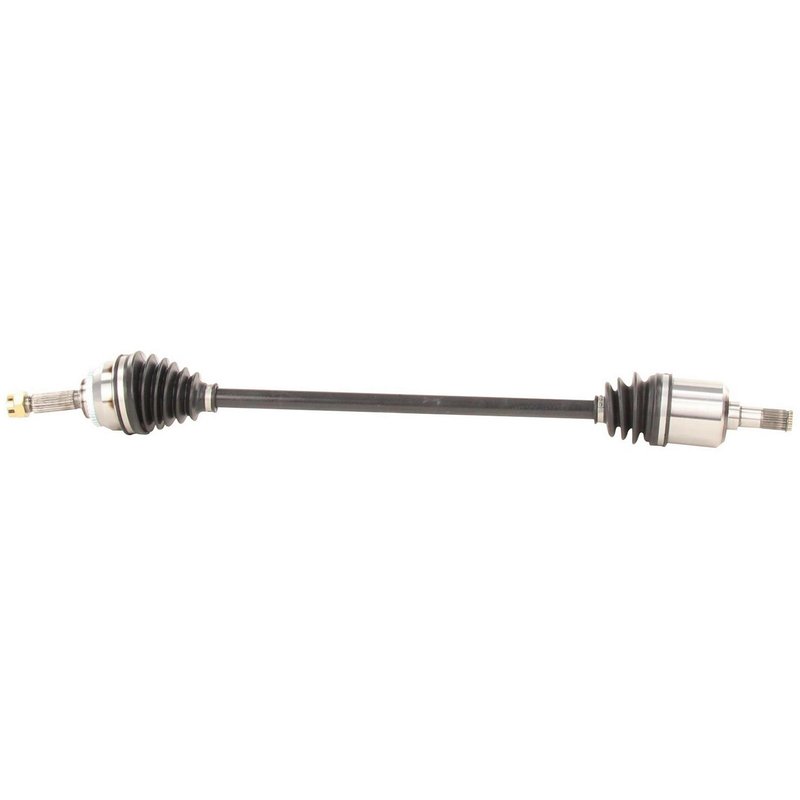

TrakMotive HY-8080 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8080 for Hyundai

The TrakMotive CV Axle Shaft HY-8080 is engineered specifically for Hyundai Elantra and Tiburon models. Designed to deliver reliable driveline performance, this new CV axle shaft ensures proper power transfer and vehicle stability.

• Compatible with Hyundai Elantra and Tiburon
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex axle nut with cotter pin locking mechanism included
• Overall compressed length of 36.97 inches (939 mm)
• Male inboard joint and conventional outboard joint types
• Thread size M22*1.5 with 25 splines on both inboard and outboard shafts

Detailed Features of the TrakMotive CV Axle Shaft HY-8080

This CV axle shaft from TrakMotive’s CV Axle Shaft product line is designed to meet the specific driveline requirements of Hyundai Elantra and Tiburon vehicles. The part number HY-8080 features a neoprene boot that resists wear and environmental damage, ensuring long service life. The ABS tone ring included has 44 teeth and a toothed ring type, which supports accurate wheel speed sensor readings for anti-lock braking systems.

The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size and a height of 6/7 inches (22 mm). It includes a cotter pin locking mechanism to secure the nut and prevent loosening during operation. Both the inboard and outboard shafts have 25 splines, with the inboard joint being male type and the outboard joint conventional, providing a precise fit and smooth power transfer.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Hyundai Elantra and Tiburon
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

• Verify compatibility with Hyundai Elantra or Tiburon before installation
• Ensure proper torque specifications for axle nut with cotter pin locking
• Inspect surrounding components such as wheel bearings and suspension for wear
• Use appropriate tools for hex axle nut (1 1/4 inch or 32 mm)
• Check ABS sensor alignment after installation to maintain system accuracy

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8080 is a new, not remanufactured, component built to meet OEM specifications. Manufactured with quality materials including a neoprene boot and precision-machined splines, this axle shaft supports reliable driveline performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for durability and fitment.
