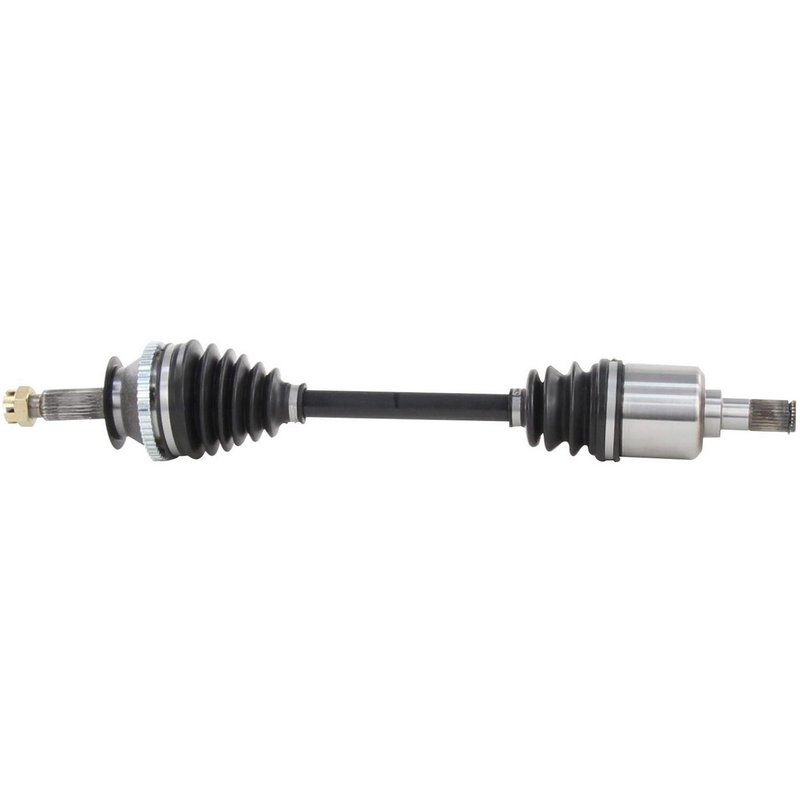

TrakMotive HY-8082 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8082 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8082 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Santa Fe vehicles
• Includes ABS tone ring with 52 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.51 inches (648 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes new axle shafts built with durable materials and precise specifications, such as the HY-8082, which features a neoprene boot and ABS tone ring integration to maintain vehicle safety systems and driveline performance.

Technical Specifications and Features

The HY-8082 CV axle shaft features a 52-tooth ABS ring with a toothed design, which is included to ensure accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. Both the inboard and outboard shafts have 27 splines, with the inboard joint being male type and the outboard joint conventional style. The overall compressed length of the axle shaft is 25.51 inches (648 mm), ensuring proper fitment and alignment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8082, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor to maintain ABS functionality. Inspect the neoprene boot for any damage during installation to avoid premature failure. This axle shaft is designed for direct replacement on compatible Hyundai Santa Fe models, simplifying installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8082 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
