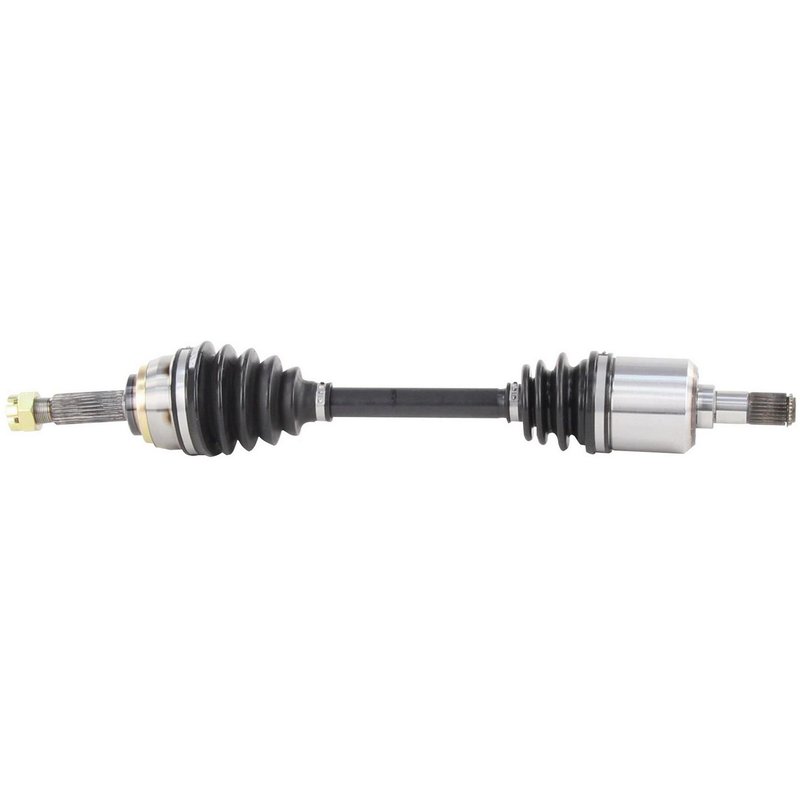

TrakMotive HY-8085 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive HY-8085 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.7 |
| Overall Compressed Length (mm) | 602 |
| Product line | CV Axle Shaft |
| Fits | Hyundai, Mitsubishi, Dodge, Eagle, and Plymouth · 24 vehicles |
New. Freshly manufactured CV axle shaft for dependable driveline replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the required hardware in the box.
Cross-references Cardone Reman 60-3223, Hayden 2724 and TrakMotive HY-8085 for the same application. See all 19.
CV Axle Shaft for Hyundai, Mitsubishi, and Dodge
TrakMotive HY-8085 is a new CV axle shaft built for front-drive applications that need precise spline engagement, stable joint movement, and dependable driveline transfer. It is a direct replacement for select Hyundai Scoupe and Elantra, plus Mitsubishi Mirage, Cordia, Tredia, and Dodge Colt applications.
Key Features
- New CV axle shaft for front left and front right applications
- 25 inboard splines and 25 outboard splines for proper fitment
- Male inboard shaft connection with conventional outboard joint type
- Neoprene boot material for joint protection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- No ABS tone ring included
- Overall compressed length: 23.7 in. (602 mm)
- TrakMotive HY-8085 cross-references Cardone Reman 60-3223 and Hayden 2724 for the same application
Product Details
The TrakMotive CV Axle Shaft brand line focuses on replacement driveline components for passenger vehicles that require accurate OE-style dimensions and joint geometry. HY-8085 is engineered as a new axle assembly with a male inboard connection, conventional outboard shaft connection, and a neoprene boot to help protect the CV joints during operation. This part number, HY-8085, is listed for select 1993-1995 Hyundai Scoupe front left, 1993 Hyundai Elantra front right with ABS before 7/93, 1991-1992 Mitsubishi Mirage front right, 1987-1989 Mitsubishi Mirage front right, 1987-1990 Dodge Colt front right, 1984-1988 Mitsubishi Cordia front right, and 1984-1988 Mitsubishi Tredia front right applications.
What This Axle Shaft Helps Address
- Clicking or popping from worn CV joints during turns
- Vibration or shudder caused by a damaged axle shaft
- Loss of driveline engagement from worn splines
- Torn boot conditions that expose the joint to contamination
- Front axle replacement needs on Hyundai Scoupe, Hyundai Elantra, Mitsubishi Mirage, Mitsubishi Cordia, Mitsubishi Tredia, and Dodge Colt vehicles
Installation Notes and Tips
Verify axle position, spline count, and compressed length before installation. This axle uses a hex-style axle nut with M22 x 1.5 thread and cotter pin locking, so confirm the hub and nut specification on the vehicle before assembly. ABS axles fit non-ABS applications unless otherwise noted, and this listing does not include an ABS tone ring. For best results, compare the original axle to HY-8085 before installation on your Hyundai Scoupe or Mitsubishi Mirage application.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also identifies the company as ISO 9001:1007 and TS 16949:2009 certified, supporting controlled production and quality management for driveline replacement parts.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1995 | Hyundai | Scoupe | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1994 | Hyundai | Scoupe | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1993 | Hyundai | Elantra | — | — | — | 1.8L | L4 | Front Right | w/ ABS; Before 7/93; CV Axle Shaft |
| 1993 | Hyundai | Scoupe | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1992 | Mitsubishi | Mirage | — | — | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1991 | Mitsubishi | Mirage | — | — | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1990 | Dodge | Colt | — | 4WD | — | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1990 | Dodge | Colt | — | — | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1989 | Dodge | Colt | GT | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1989 | Mitsubishi | Mirage | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1988 | Dodge | Colt | Premier | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1988 | Mitsubishi | Cordia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1988 | Mitsubishi | Mirage | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1988 | Mitsubishi | Tredia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Dodge | Colt | Premier | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1987 | Mitsubishi | Cordia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Mitsubishi | Mirage | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1987 | Mitsubishi | Tredia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Mitsubishi | Cordia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Mitsubishi | Tredia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Mitsubishi | Cordia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Mitsubishi | Tredia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Mitsubishi | Cordia | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Mitsubishi | Tredia | — | — | — | — | — | Front Right | CV Axle Shaft |
