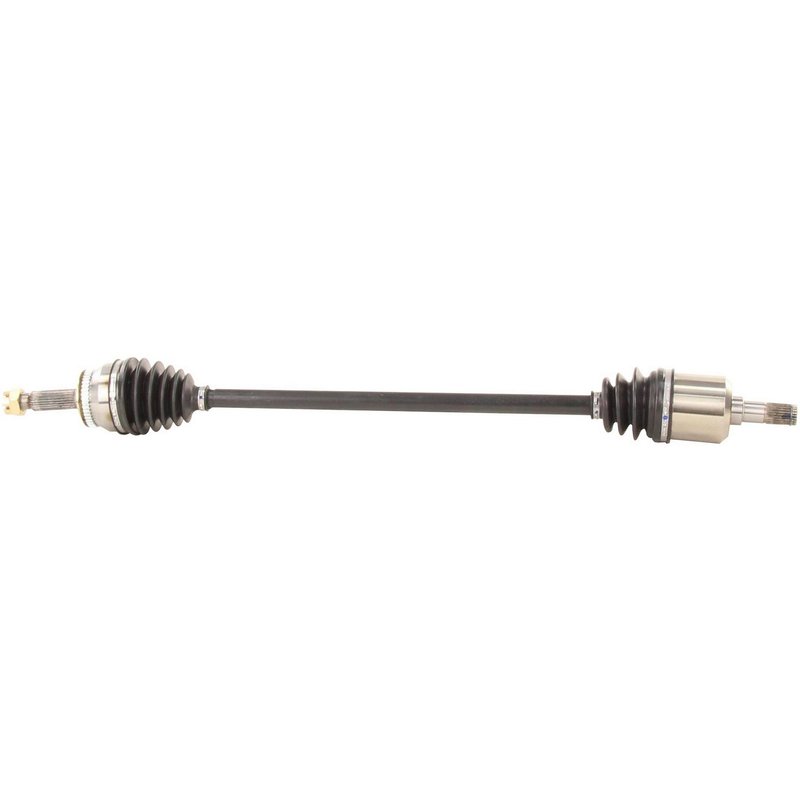

TrakMotive HY-8088 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8088

The TrakMotive CV Axle Shaft HY-8088 is engineered for reliable driveline performance in Hyundai Elantra and Tiburon models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Elantra and Tiburon
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 36.3 inches (922 mm)
• Male inboard joint and conventional outboard joint types
• Thread size M22*1.5 with 25 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV Axle Shaft line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts with cotter pin locking for secure installation. The HY-8088 model exemplifies this approach by combining durability and fitment accuracy for Hyundai vehicles.

Technical Specifications and Features

The HY-8088 CV Axle Shaft features a 44-tooth ABS ring designed to integrate with the vehicle's anti-lock braking system. The ABS tone ring is included and uses a toothed design to ensure accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses a cotter pin locking mechanism for secure fastening. Both the inboard and outboard shafts have 25 splines, with the inboard joint being male type and the outboard joint conventional style. The neoprene boot material provides resistance to wear and environmental factors, protecting the CV joints effectively.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Elantra and Tiburon
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

Ensure compatibility with Hyundai Elantra and Tiburon models before installation. Use the included hex head axle nut and cotter pin to secure the axle shaft properly. Verify the ABS tone ring is correctly positioned to maintain ABS sensor accuracy. It is recommended to inspect related suspension and hub components during installation for optimal driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8088 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes all necessary hardware for installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment.
