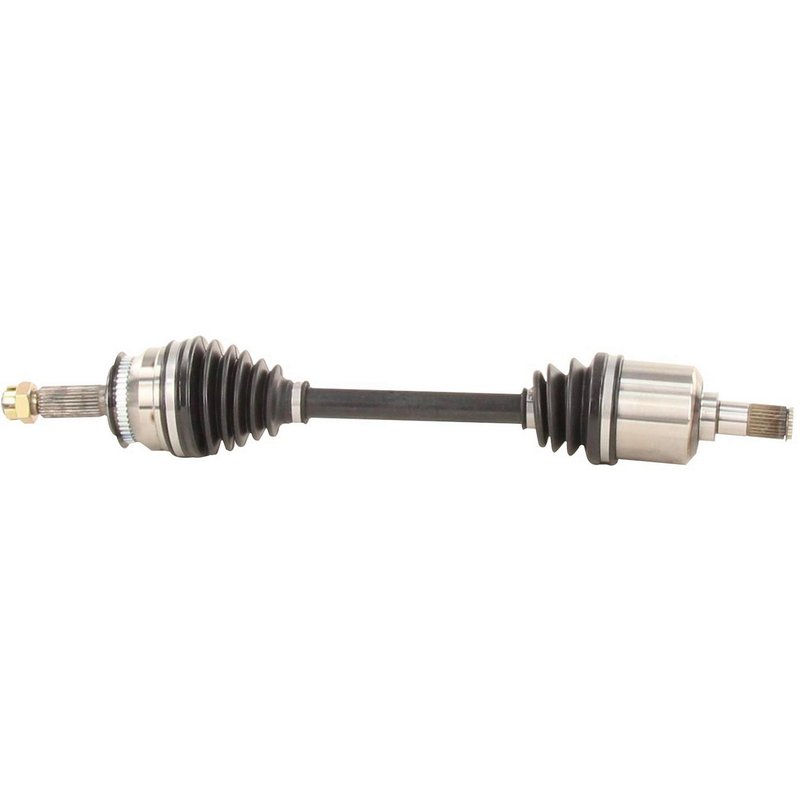

TrakMotive HY-8089 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8089 for Hyundai Tiburon

The TrakMotive CV Axle Shaft HY-8089 is designed specifically for Hyundai Tiburon models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Tiburon
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.55 inches (649 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts

Detailed Features of the TrakMotive CV Axle Shaft

The TrakMotive CV Axle Shaft HY-8089 belongs to the CV Axle Shaft product line, which focuses on delivering precise driveline components engineered for specific vehicle applications. This axle shaft features a neoprene boot that resists wear and environmental damage, ensuring long service life. The ABS tone ring is toothed with 44 teeth, compatible with the vehicle's anti-lock braking system for accurate wheel speed monitoring.

The axle nut included is a hex type with a 1 1/4 inch (32 mm) hex size and a height of 6/7 inches (22 mm). It uses a cotter pin locking type to secure the nut firmly in place, preventing loosening during operation. The shaft itself has 27 splines on both the inboard and outboard ends, with the inboard joint designed as a male connection and the outboard joint as a conventional spline connection. The overall compressed length of 25.55 inches (649 mm) ensures proper fitment within the Hyundai Tiburon's driveline assembly.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Hyundai Tiburon models
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8089, ensure the axle nut is torqued to the manufacturer’s specifications and secured with the cotter pin to prevent loosening. Inspect the axle boots for any damage during installation and verify the ABS tone ring is properly aligned with the sensor. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid rounding off the nut head. Proper lubrication of splines and joints before assembly will aid in smooth installation and operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The neoprene boot material and ABS tone ring inclusion reflect attention to durability and safety compliance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Hyundai Tiburon driveline applications.
