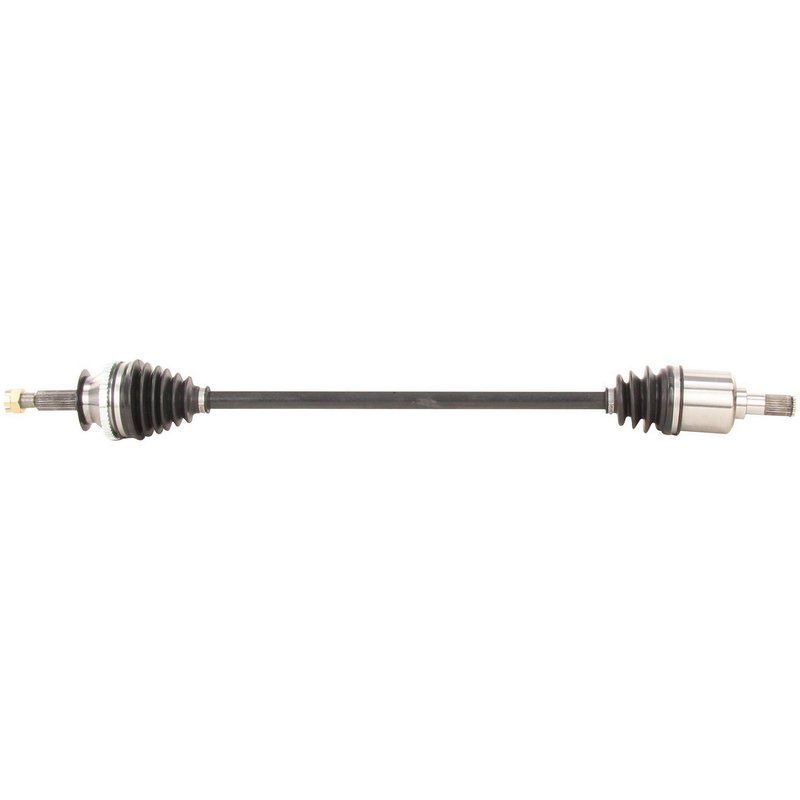

TrakMotive HY-8090 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8090 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8090 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Santa Fe vehicles
• Part number: HY-8090
• Includes ABS tone ring with 52 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 38.21 inches (970.5 mm)

Detailed Features and Specifications

The TrakMotive CV Axle Shaft HY-8090 features a toothed ABS ring with 52 teeth, which is included to maintain proper ABS sensor function. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size and a height of 6/7 inches (22 mm), designed with a cotter pin locking type for secure installation. The axle nut length measures 1 1/2 inches (37 mm) and has an M22*1.5 thread size. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint from contaminants.

This CV axle shaft includes a male inboard joint type and connection style, with 27 splines on both the inboard and outboard ends. The outboard joint type and shaft connection style are conventional, ensuring compatibility with the Hyundai Santa Fe's driveline system. The overall compressed length of 38.21 inches (970.5 mm) matches factory specifications for proper fitment.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV axle components designed to meet or exceed OEM standards. This line emphasizes precise fitment and durability, making it suitable for vehicles like the Hyundai Santa Fe that require reliable driveline parts. The CV Axle Shaft line includes components with integrated ABS tone rings and secure axle nut designs to maintain vehicle safety and performance.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boots
• Secures wheel hub connection with included cotter pin locking axle nut

Installation Notes and Tips

• Ensure compatibility with Hyundai Santa Fe model year before installation
• Use proper torque specifications for the M22*1.5 axle nut with cotter pin locking
• Inspect surrounding components such as wheel bearings and suspension for wear
• Verify ABS sensor alignment with the toothed ABS ring during installation
• Replace any damaged or worn hardware to maintain driveline integrity

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8090 is a new, not remanufactured, component designed to meet OEM quality standards. It includes all necessary hardware such as the axle nut with cotter pin locking for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment for Hyundai Santa Fe vehicles.
