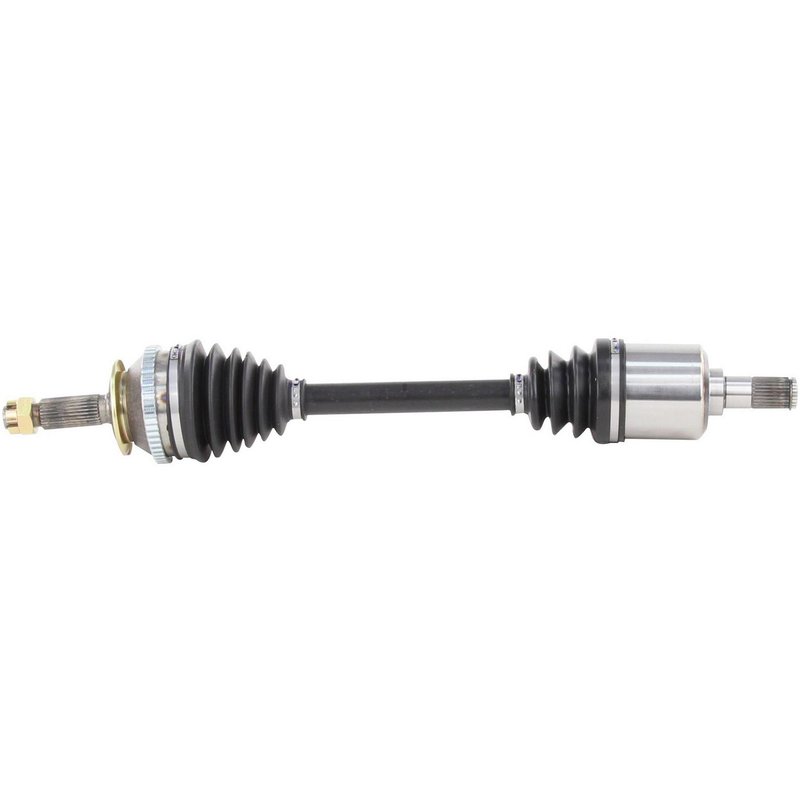

TrakMotive HY-8091 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8091 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8091 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Santa Fe
• Includes ABS tone ring with 52 toothed abs ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.71 inches (653 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts

Detailed Features of the TrakMotive CV Axle Shaft HY-8091

The TrakMotive CV Axle Shaft HY-8091 belongs to the CV Axle Shaft product line, which focuses on delivering precise driveline components for various vehicle applications. This CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to maintain joint integrity over time. The included ABS tone ring with 52 teeth and a toothed design supports accurate wheel speed sensor readings, essential for ABS functionality on the Hyundai Santa Fe.

The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses a cotter pin locking mechanism to ensure secure fastening. Both the inboard and outboard shafts have 27 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional style. The overall compressed length of 25.71 inches (653 mm) ensures proper fitment and alignment within the driveline assembly.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

• Verify compatibility with your Hyundai Santa Fe model year before installation
• Ensure proper torque specifications are followed for axle nut installation
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Use new cotter pins to secure the axle nut locking mechanism
• Check ABS sensor alignment after installation to maintain accurate readings

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft HY-8091 is a new, not remanufactured, component designed to meet or exceed OEM standards. Manufactured with quality materials including a neoprene boot and precision-machined splines, this axle shaft supports reliable driveline operation. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure durability and performance.
