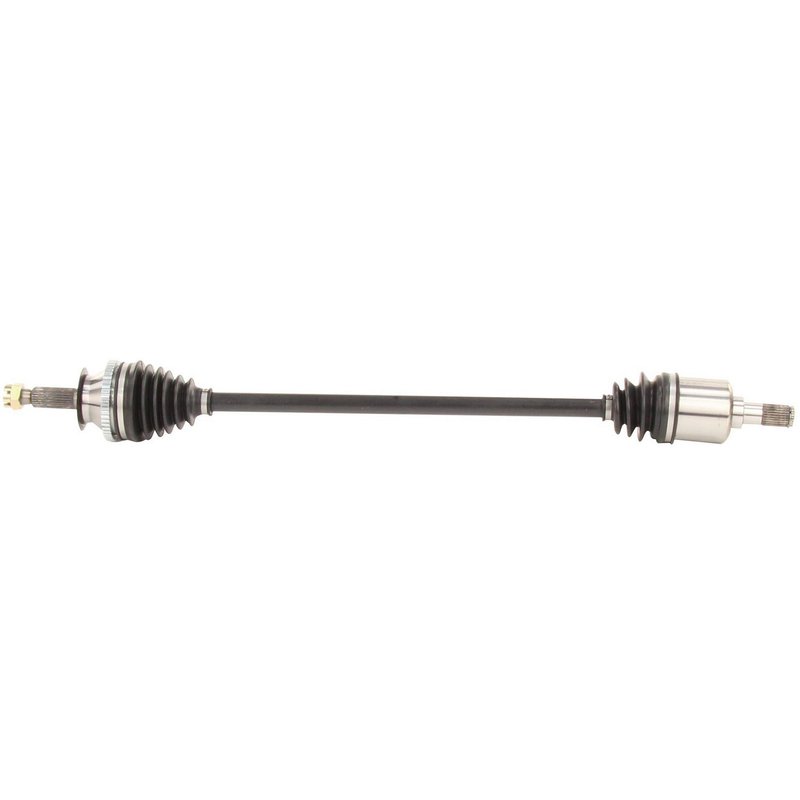

TrakMotive HY-8093 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8093 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.56 |
| Overall Compressed Length (mm) | 954 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New axle shaft. Built as a fresh replacement for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Ready for applications that use a toothed sensor ring.
Cross-references Cardone Reman 60-3398, TrakMotive HY-8093 and 80-9298 for the same application. See all 16.
TrakMotive HY-8093 CV Axle Shaft for Hyundai Santa Fe
TrakMotive HY-8093 is a new CV axle shaft for the front right position on 2001-2006 Hyundai Santa Fe models. It is built for direct driveline replacement where a worn axle can cause vibration, clicking, or loss of smooth power transfer.
Key Features
- Fits 2001-2006 Hyundai Santa Fe, front right
- New CV axle shaft for driveline and axle service
- 27-spline inboard and 27-spline outboard configuration
- Neoprene boot material for flexible joint protection
- Includes a toothed ABS tone ring with 52 teeth
- Supplied with axle nut; M22 x 1.5 thread, 32 mm hex size, cotter pin locking type
- Overall compressed length: 37.56 in. (954 mm)
Product Details
The TrakMotive CV Axle Shaft brand line focuses on replacement axle assemblies for driveline repair. HY-8093 is engineered as a direct-fit front right axle for Hyundai Santa Fe applications, with a male inboard shaft connection and a conventional outboard joint design. The included ABS tone ring supports vehicles equipped with wheel speed sensing, while the axle nut specifications help match the original service requirements. This part cross-references Cardone Reman 60-3398 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive play or looseness in the front axle assembly
- ABS-related driveline service needs on equipped vehicles
Installation Notes and Tips
Verify front right fitment by year, model, and axle specifications before installation. Confirm axle nut thread size, hex size, and locking style against the original hardware and service manual. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat axle noise or premature wear. HY-8093 fits 2001-2006 Hyundai Santa Fe, front right, and is intended for direct replacement in the listed application.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management practices.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | FWD | Manual | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2005 | Hyundai | Santa Fe | FWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2004 | Hyundai | Santa Fe | FWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2003 | Hyundai | Santa Fe | FWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2002 | Hyundai | Santa Fe | FWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2001 | Hyundai | Santa Fe | FWD | Manual | 2.4L | L4 | Front Right | CV Axle Shaft |
