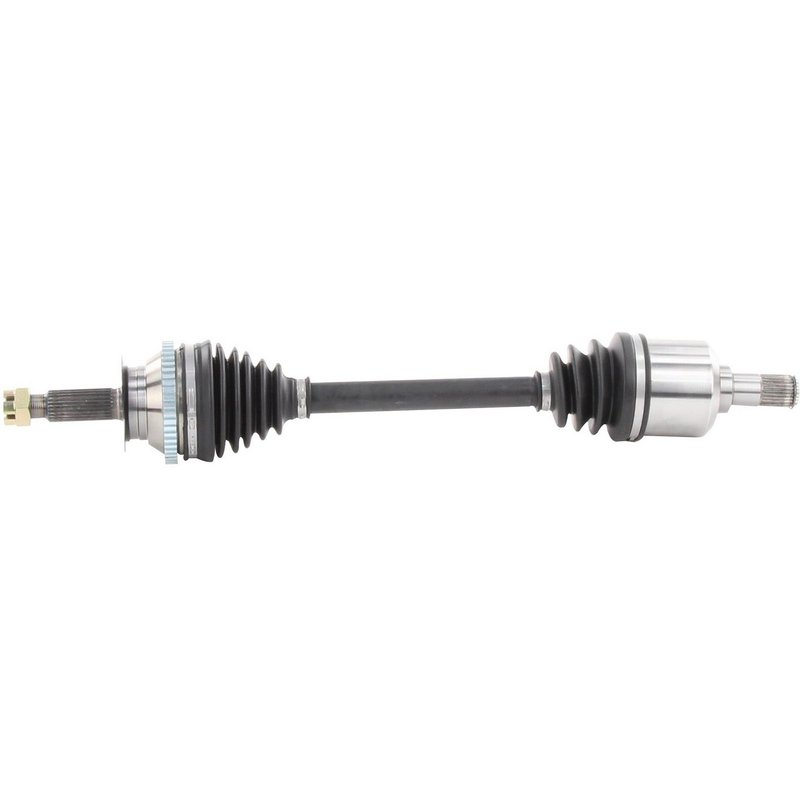

TrakMotive HY-8094 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8094 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8094 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Santa Fe vehicles
• Includes ABS tone ring with 52 toothed ring teeth
• Equipped with a neoprene boot for durability and protection
• Axle nut included with cotter pin locking mechanism
• Overall compressed length of 25.55 inches (649 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV Axle Shaft line is designed to provide a direct fit replacement with quality materials such as neoprene boots and ABS tone rings to maintain vehicle safety systems. The HY-8094 part number represents a new axle shaft option within this line, tailored for Hyundai Santa Fe applications.

Technical Specifications and Features

This CV axle shaft features a 52-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a length of 1 1/2 inches (37 mm) and a height of 6/7 inches (22 mm). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. Both the inboard and outboard shafts have 27 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional style. The overall compressed length of 25.55 inches (649 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leaks with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8094, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor to maintain ABS functionality. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on Hyundai Santa Fe models, but always confirm fitment with your vehicle's year and drivetrain configuration.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8094 is a new, OEM-quality replacement part manufactured to meet or exceed industry standards. It includes an ABS tone ring and axle nut to ensure complete assembly compatibility. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
