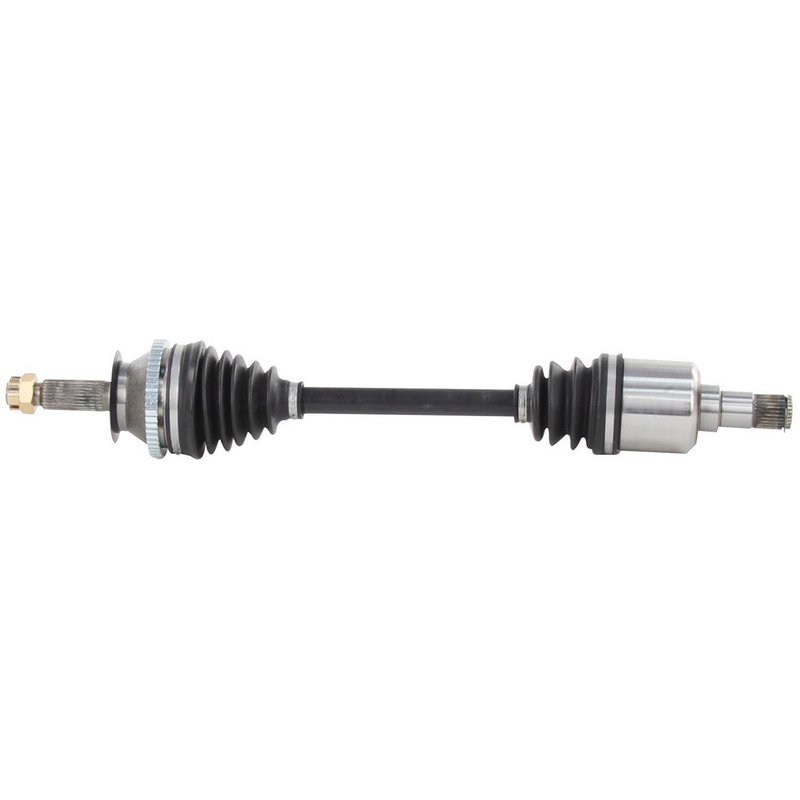

TrakMotive HY-8095 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8095 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.69 |
| Overall Compressed Length (mm) | 652.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 8 vehicles |
New unit. Freshly manufactured CV axle shaft for dependable replacement.
Neoprene boot. Flexible material helps resist wear and cracking over time.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-3364, Cardone Reman 60-3363 and Cardone Reman 60-3364 for the same application. See all 28.
TrakMotive HY-8095 CV Axle Shaft for Hyundai Santa Fe
The TrakMotive HY-8095 CV axle shaft is a new front left driveline replacement for 2003-2006 Hyundai Santa Fe models. Built with a neoprene boot, toothed ABS tone ring, and included axle nut, it addresses common front axle service needs with application-specific fitment.
Key Features
- Fits 2003-2006 Hyundai Santa Fe, front left
- New CV axle shaft for driveline and axle repair
- ABS tone ring included with 52-tooth toothed ring
- Neoprene boot material for joint protection
- Male inboard connection with conventional outboard joint
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- Overall compressed length: 25.69 in. (652.5 mm)
- TrakMotive HY-8095 cross-references Cardone New 66-3364 for the same application
Product Details
TrakMotive CV Axle Shaft HY-8095 is built for the front left position on Hyundai Santa Fe vehicles from 2003 through 2006. It uses a 28-spline inboard connection and 27-spline outboard connection, with a conventional outboard joint and male inboard shaft connection style. The included ABS tone ring and toothed ring design support vehicles equipped with wheel speed sensing requirements, while ABS axles also fit non-ABS applications unless otherwise noted by the vehicle configuration.
As part of the TrakMotive CV Axle Shaft line, this unit is a direct-fit driveline replacement focused on correct dimensions and connection styles for the listed Hyundai Santa Fe applications. The HY-8095 part number is also referenced in aftermarket catalogs for the same front left Santa Fe fitment.
Common Repair Applications
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot or grease loss at the axle assembly
- ABS-related axle replacement on front left Hyundai Santa Fe models
- Axle shaft wear from high-mileage driveline service
Installation Notes
Verify spline count, compressed length, and axle nut specifications before installation. Confirm front left position fitment on 2003-2006 Hyundai Santa Fe models and inspect related hub, seal, and suspension components during service. Use the correct M22 x 1.5 axle nut and torque procedures specified by the vehicle manufacturer.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The HY-8095 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | FWD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2006 | Hyundai | Santa Fe | 4WD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2005 | Hyundai | Santa Fe | FWD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2005 | Hyundai | Santa Fe | 4WD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2004 | Hyundai | Santa Fe | FWD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2004 | Hyundai | Santa Fe | 4WD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2003 | Hyundai | Santa Fe | FWD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2003 | Hyundai | Santa Fe | 4WD | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
