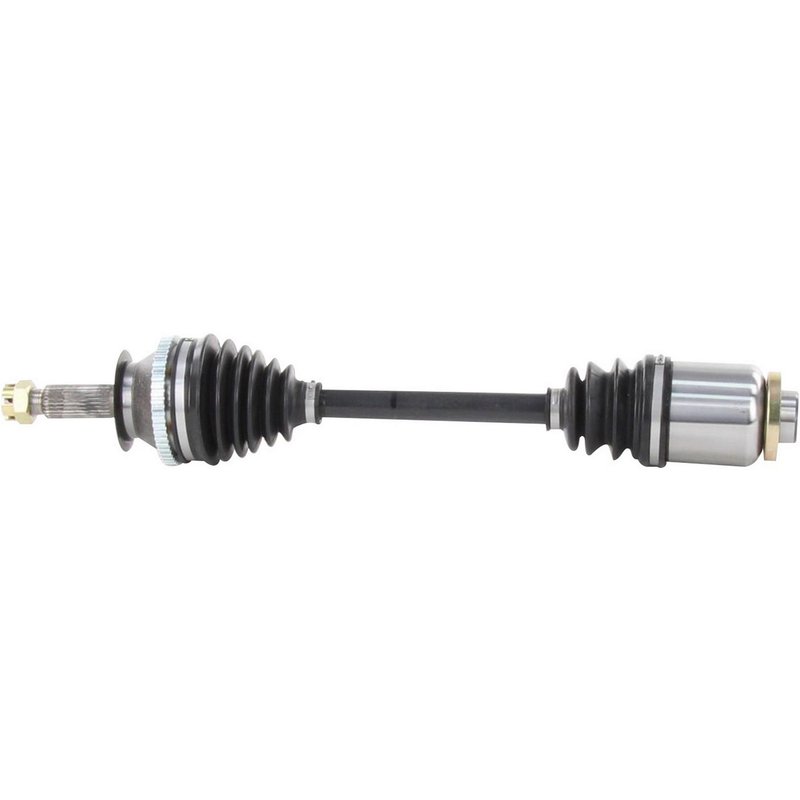

TrakMotive HY-8096 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8096 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8096 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Santa Fe vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 52-tooth ABS ring and included tone ring
• Features a hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 23.78 inches (604 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This line emphasizes quality materials such as neoprene boots for enhanced resistance to wear and environmental factors. The HY-8096 model incorporates a toothed ABS ring and tone ring to maintain accurate wheel speed sensor readings, essential for vehicle stability and braking systems.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 28-2t splines and a conventional outboard joint with 27 splines, ensuring secure shaft connections. The included axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a length of 1 1/2 inches (37 mm) and a height of 6/7 inches (22 mm). The nut uses an M22x1.5 thread size and locks with a cotter pin for added safety. The neoprene boot material provides flexibility and resistance to cracking or tearing under typical driving conditions.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Resolves issues related to torn or leaking CV boots
• Eliminates clicking or popping noises during turns caused by joint wear
• Restores proper ABS sensor function with included tone ring
• Addresses axle nut thread or locking failures

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8096, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Hyundai Santa Fe models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8096 is a new, high-quality replacement part manufactured to meet or exceed OEM standards. It includes an ABS tone ring and durable neoprene boot to ensure long service life. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality guarantees to support reliability and customer satisfaction.
