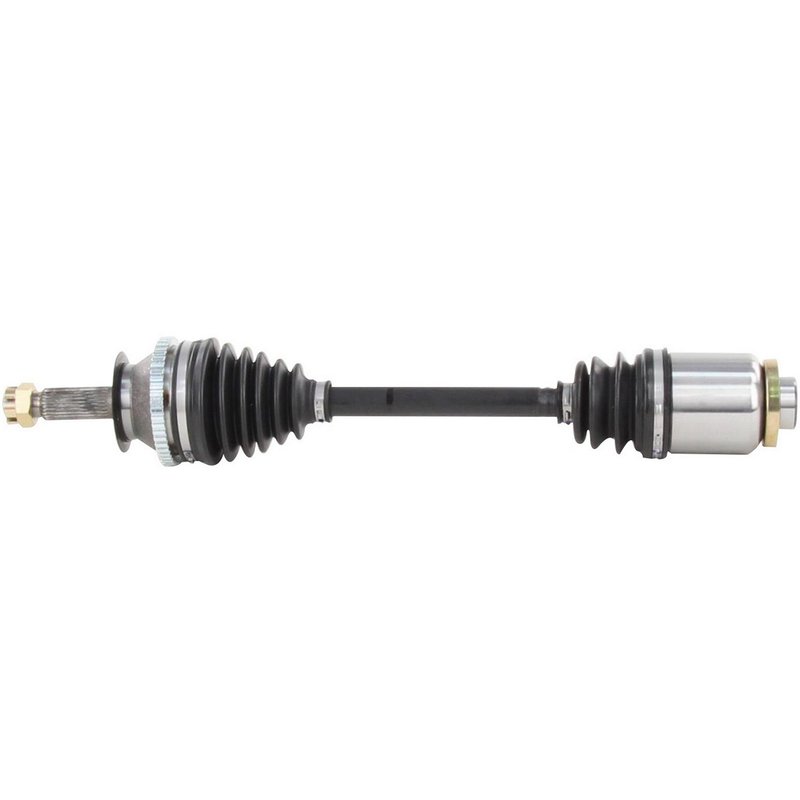

TrakMotive HY-8097 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8097 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8097 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Santa Fe vehicles
• Includes ABS tone ring with 52 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection against contaminants
• Axle nut included with cotter pin locking mechanism for secure installation
• Overall compressed length of 23.35 inches (593 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line emphasizes compatibility and durability, featuring components such as ABS tone rings and neoprene boots to maintain vehicle safety systems and extend service life. The HY-8097 model exemplifies these standards with its comprehensive design tailored for Hyundai Santa Fe applications.

Technical Specifications and Features

The HY-8097 CV axle shaft includes a 52-tooth ABS ring with a toothed design, ensuring accurate wheel speed data for ABS and traction control systems. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from dirt and moisture. The axle nut features a hex head measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22 x 1.5 thread size and secures with a cotter pin locking type for added safety. The inboard joint is female type with 28-2t splines, while the outboard joint is conventional with 27 splines, ensuring proper connection and torque transfer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8097, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Hyundai Santa Fe models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8097 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring to ensure a complete replacement. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in driveline applications.
