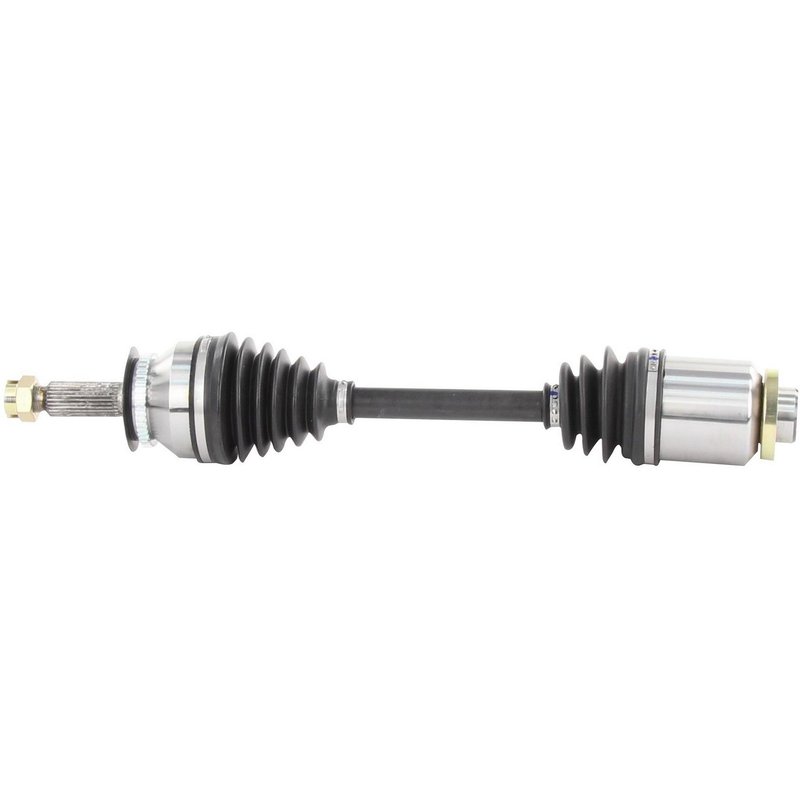

TrakMotive HY-8098 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8098 for Hyundai Tiburon

The TrakMotive CV Axle Shaft HY-8098 is engineered specifically for Hyundai Tiburon models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Tiburon models
• Includes ABS tone ring with 44 toothed ring count
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 22.83 inches (580 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This line emphasizes quality materials and accurate specifications, such as the inclusion of ABS tone rings and proper spline counts, to maintain vehicle safety and performance. The HY-8098 model exemplifies this approach with its detailed design features suited for the Hyundai Tiburon.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring designed to interface with the vehicle's anti-lock braking system, ensuring accurate wheel speed readings. The ABS tone ring is included and is of the toothed type, which is compatible with the Hyundai Tiburon's sensor system. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material provides resistance to wear and environmental factors, protecting the CV joint. The inboard joint is female type with 26-2t splines, while the outboard joint is conventional with 27 splines, ensuring proper connection and torque transfer. The overall compressed length of 22.83 inches (580 mm) matches the Hyundai Tiburon's specifications for direct replacement.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Hyundai Tiburon
• Restoring proper ABS sensor function with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease leaks from torn or degraded CV boots
• Ensuring secure axle nut fitment with included cotter pin locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8098 on a Hyundai Tiburon, verify the axle nut torque specifications and ensure the cotter pin is properly installed to prevent loosening. Inspect the axle splines for damage before installation to guarantee a secure fit. The neoprene boot should be checked for proper seating to avoid premature wear. It is recommended to use appropriate tools for removing and tightening the hex head axle nut to avoid rounding.

Quality Assurance and Warranty

This CV axle shaft is a new, direct replacement part manufactured to meet OEM standards for fit and function. The inclusion of the ABS tone ring and cotter pin locking axle nut reflects attention to safety and compatibility. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in driveline applications.
